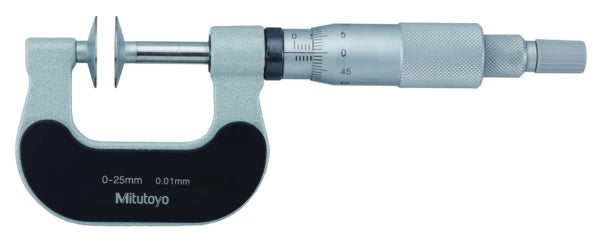

Mitutoyo Disc Micrometer, Hardened Steel Disks 0-25mm, Disk=20mm 169-201-10 Non Rotating Spindle

Roll over image to zoom in Click on image to zoom

Mitutoyo Disc Micrometer, Hardened Steel Disks 0-25mm, Disk=20mm 169-201-10 Non Rotating Spindle

Name: Mitutoyo Disc Micrometer, Hardened Steel Disks 0-25mm, Disk=20mm 169-201-10 Non Rotating Spindle
Brand: Mitutoyo
SKU: 169-201-10
Price: 178.5 GBP
Availability: InStock

MitutoyoSKU: 169-201-10

All prices exclude VAT, which will be added at checkout.

Price:

£178.50 £255.00

Quantity:

This Disc Micrometer has a non-rotating spindle and allows you measure a range of different materials.
It offers you the following benefits:

It features a non-rotating spindle and disc-shaped measuring surfaces.
Measuring the root tangent length of spur and helical gears
Measurable range of gear pitch: 0,5-6 module
It‘s suitable for measuring materials such as felt, rubber, cardboard and fabric.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	169-201-10
Measuring Range	0-25mm
Graduation	.01mm
Unit of Measurement	Metric
Measuring Force	8+/-0.8N
Type	Disc
Constant Force Device	Ratchet Stop
Flatness	1µm/.00004"
Parallelism	.004mm/.00016"
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Metric
Range:	0 - 25 mm
Max. Permissible Error J MPE:	±4 µm
Flatness:	1 µm
Parallelism:	4 µm
Graduation:	0.01mm
Measuring face:	Hardened steel, micro-lap finish
Measuring spindle:	ø6,35 mm, non-rotating, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Mass:	230 g
