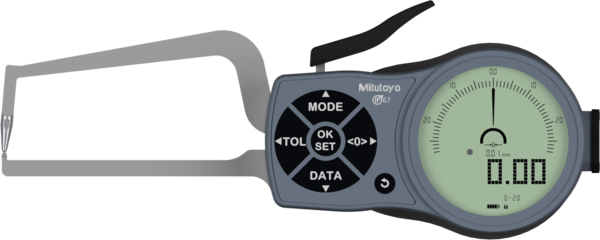

Mitutoyo External Digital Caliper Gauge 209-933 0-20mm (Kroeplin Equivalent K2R20)

Roll over image to zoom in Click on image to zoom

Mitutoyo External Digital Caliper Gauge 209-933 0-20mm (Kroeplin Equivalent K2R20)

Name: Mitutoyo External Digital Caliper Gauge 209-933 0-20mm (Kroeplin Equivalent K2R20)
Brand: Mitutoyo
SKU: 209-933
Price: 448.0 GBP
Availability: InStock

MitutoyoSKU: 209-933

All prices exclude VAT, which will be added at checkout.

Price:

£448.00 £640.00

Quantity:

Digital Caliper Gauge enables measurements in hard-to-reach places
Excellent resistance against water and dust IP67 level

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	209-933
Measuring Range	0-20mm
Resolution	Switchable .001mm, .002mm, .005mm, .01mm/.00005", .0001", .001", .0005"
Accuracy	.03mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP67
Measuring Force	1.1-1.6N
Type	External
Repeatability	.01mm

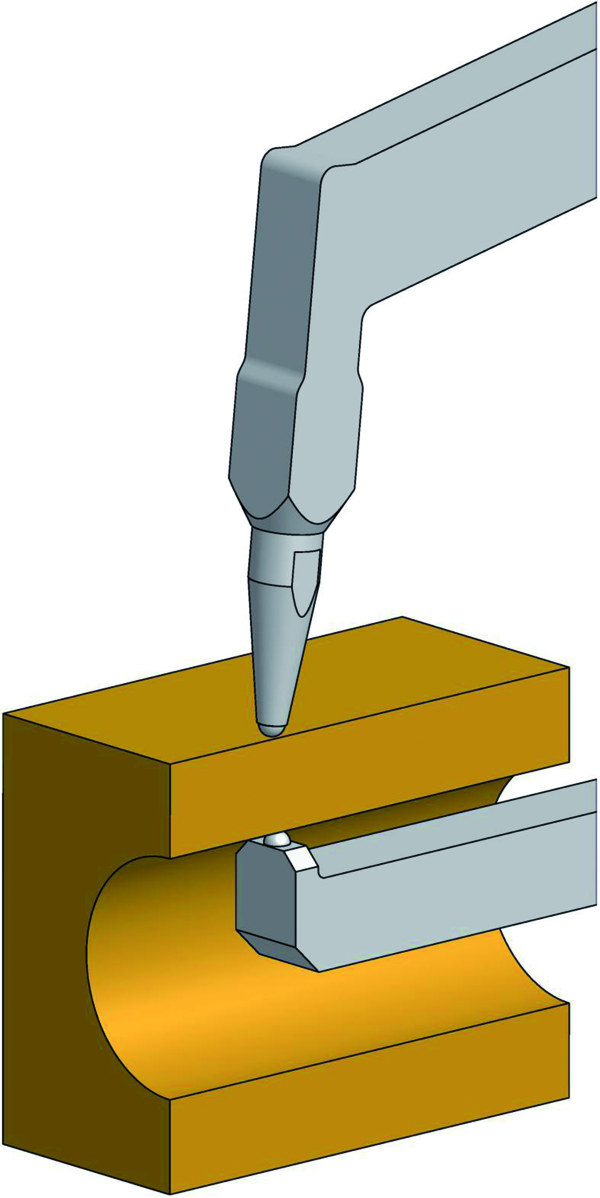

Application	Measurement of tube wall thickness
Measuring Contacts	Carbide Ball 1.5mm diameter

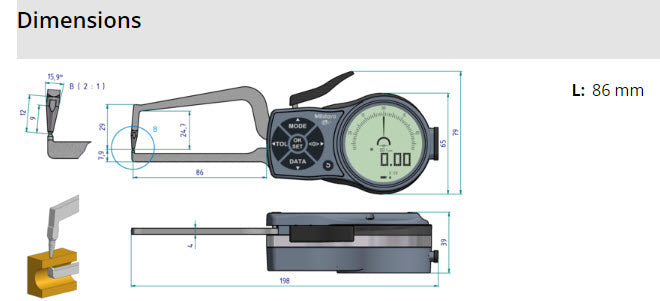

Measurement L	86mm
Measurement B	2.5mm
Measurement A	24.7mm
Resolution/Capacity	Switchable .001mm, .002mm, .005mm, .01mm/.00005", .0001", .001", .0005"

Digital/Analog:	Digital
Inch-Metric:	Metric/Inch
Delivered:	Including 2 batteries LR3, certificate of inspection
Range:	0 - 20 mm
Digital step:	0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05 mm
Protection:	IP67
Measuring force:	1,1-1,6 N
Mass:	430 g
Power supply:	2 batteries LR3 (AAA)
ABS/INC switchable:	Yes
Auto Power OFF after 1/5/10 min. non use:	YES
Analog bar resolution switchable:	Yes
OFFSET:	Yes
Type:	Fig. 2
Hb:	24.7 mm
Hf:	2.5 mm
mm/inch conversion:	Yes
HOLD:	Yes
SET key:	Yes
DATA key:	Yes
DATA-Logger (100 measured values):	Yes
Max. reading:	Yes
Min. reading:	Yes
Tolerance LED (green/red):	Yes
Tolerance judgement:	Yes
