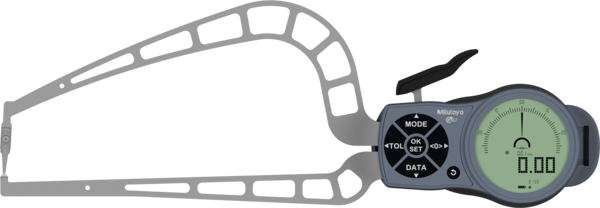

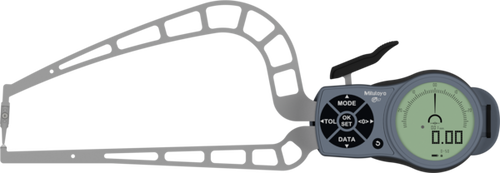

Mitutoyo External Digital Caliper Gauge 209-958 0-50mm

MitutoyoSKU: 209-958
List price: £926.00 Offer price: £676.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Digimatic Cable, Round 6-Pin Type 937387
Part number: 937387  → View product
Mitutoyo Digimatic Cable, Round 6-Pin Type 965013
Part number: 965013  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable E Round 6-Pin Type 02AZD790E
Part number: 02AZD790E  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380E
Part number: 06AFM380E  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 011551 Interface adaptor
Part number: 011551  → View product
  • Range: 0-50mm (0-1.97?)
  • Resolution: 0.001mm (0.00005?)
  • Accuracy: ± 0.05mm (0.002?)
  • Repeatability: 0.03mm (0.001?)
  • Measuring depth: 169mm
  • Type of measuring contact moveable: Chisel R 0.75mm
  • Measuring contact moveable: 30mm
  • Type of measuring contact fixed: HM-Ball Ø 3mm
  • Measuring contact fixed: 4.3mm
  • Min measuring force: 0.8N
  • Max measuring force: 1.7N
  • IP67 protection: Water, coolant & dust resistant

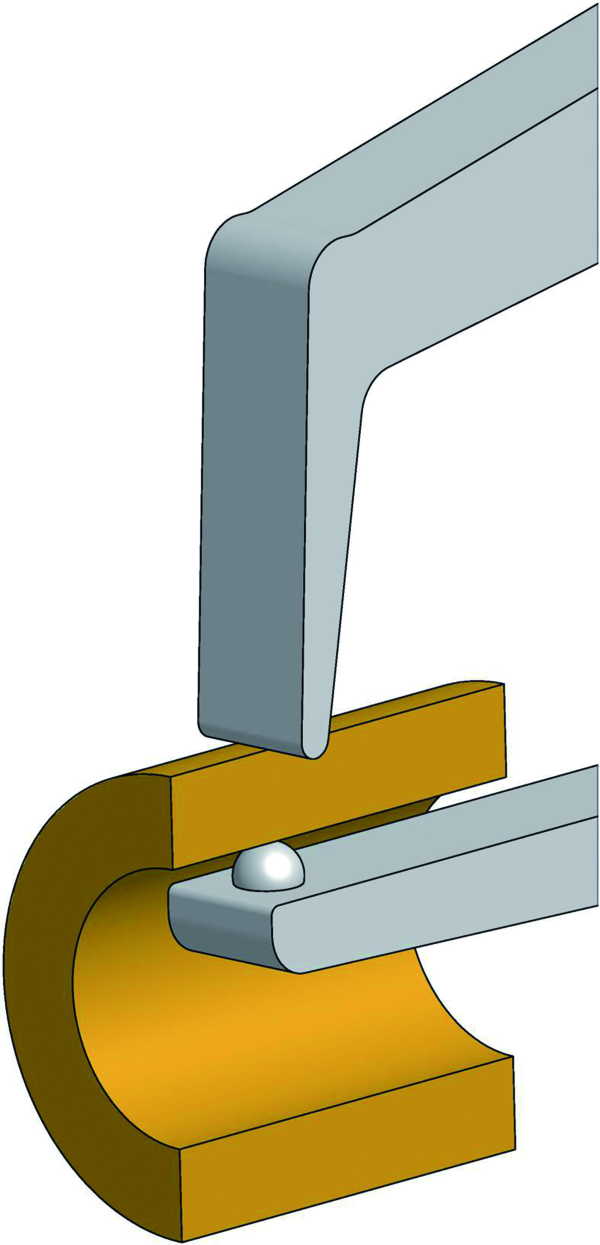

  • Application: Measurement of tube wall thickness
  • Data output
  • Inch/metric
  • Brand: Mitutoyo/Kroeplin

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo External Digital Caliper Gauge 209-958 0-50mm Click to open the PDF document
