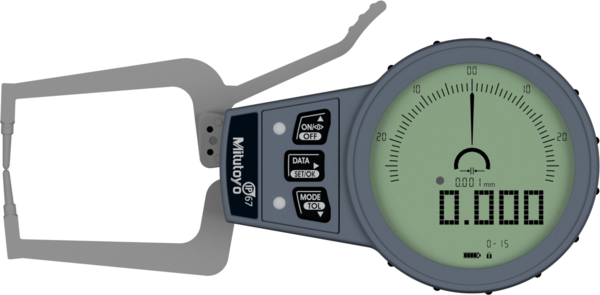

A Mitutoyo external dial caliper gauge. The caliper is spring loaded and makes point contact at constant measuring force.
External Caliper Gauge Features:
- Range: 0-15mm
- Resolution: 0.001mm
- Accuracy: ± 0.015mm
- Measuring force: 1.3-1.5N
- IP67 Rated: High protection against liquid and dust ingress
- Data output

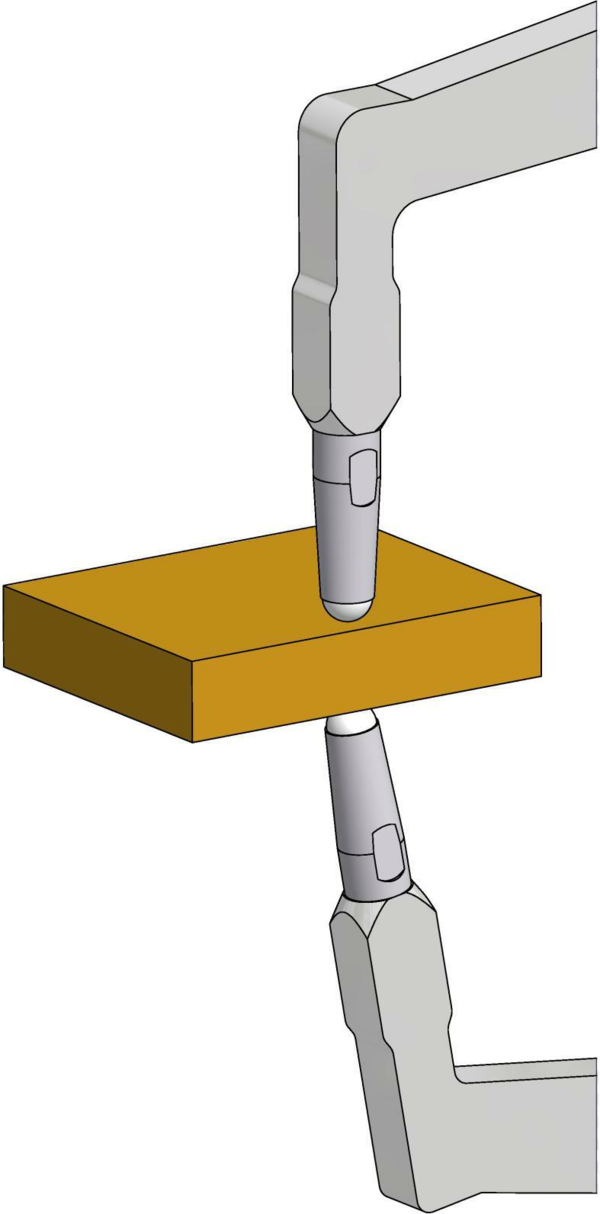

- Contact point: 0.4mm bevel
- Tolerance LED (green/red)
- Tolerance judgement
- MPN: 209-926
- Brand: Mitutoyo
No technical information is currently available.
No application information is currently available.
