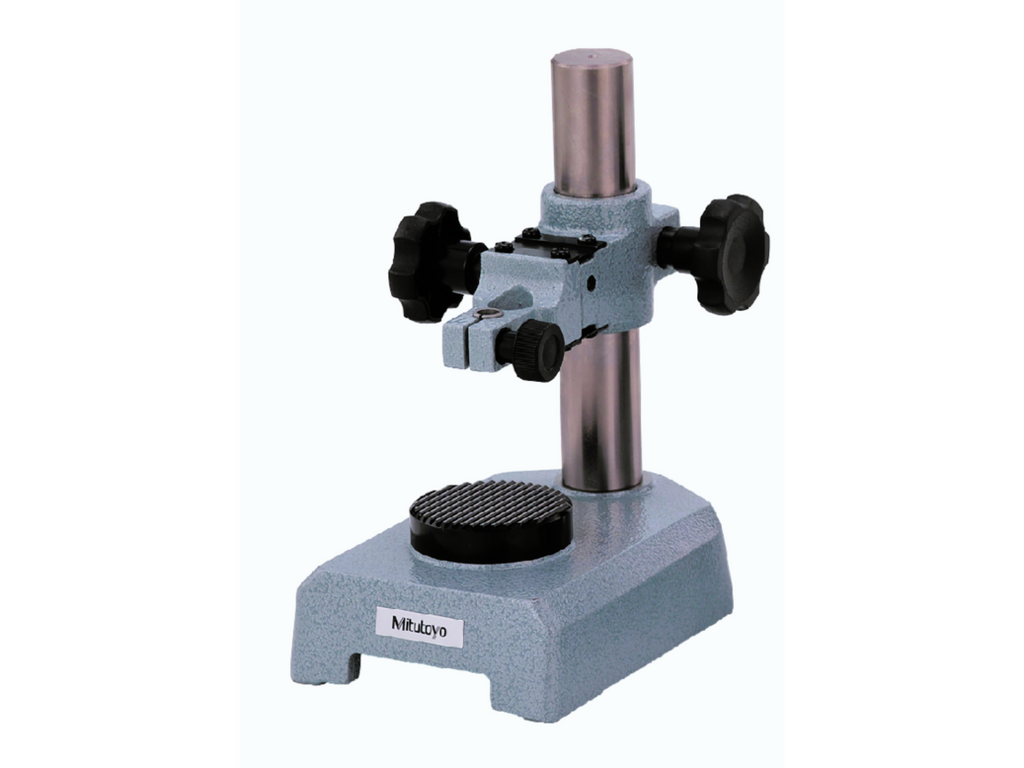

Mitutoyo Dial Gauge Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator.

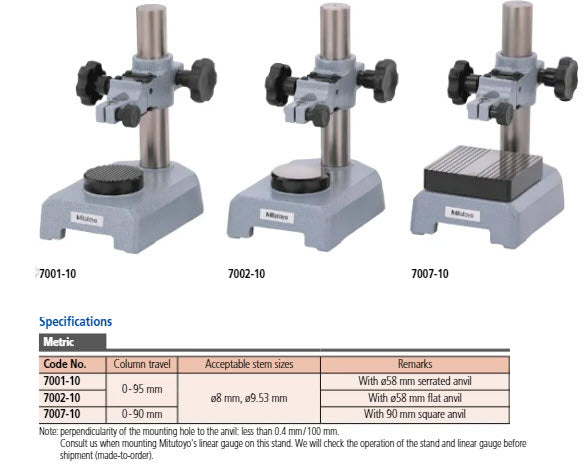

Specification

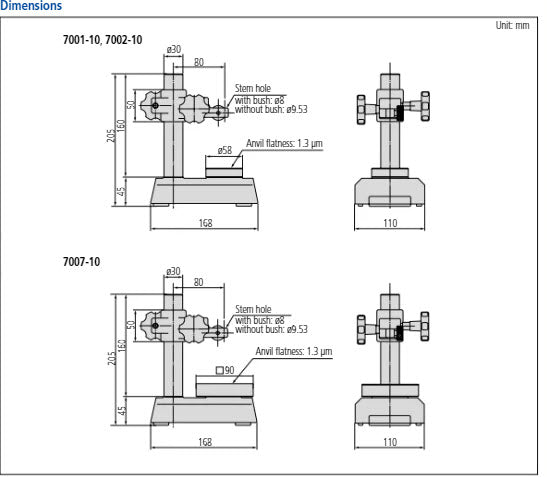

Effective table dimensions: Ø 58 mm
Column Ø: 30 mm
Max. measurement height: 95 mm

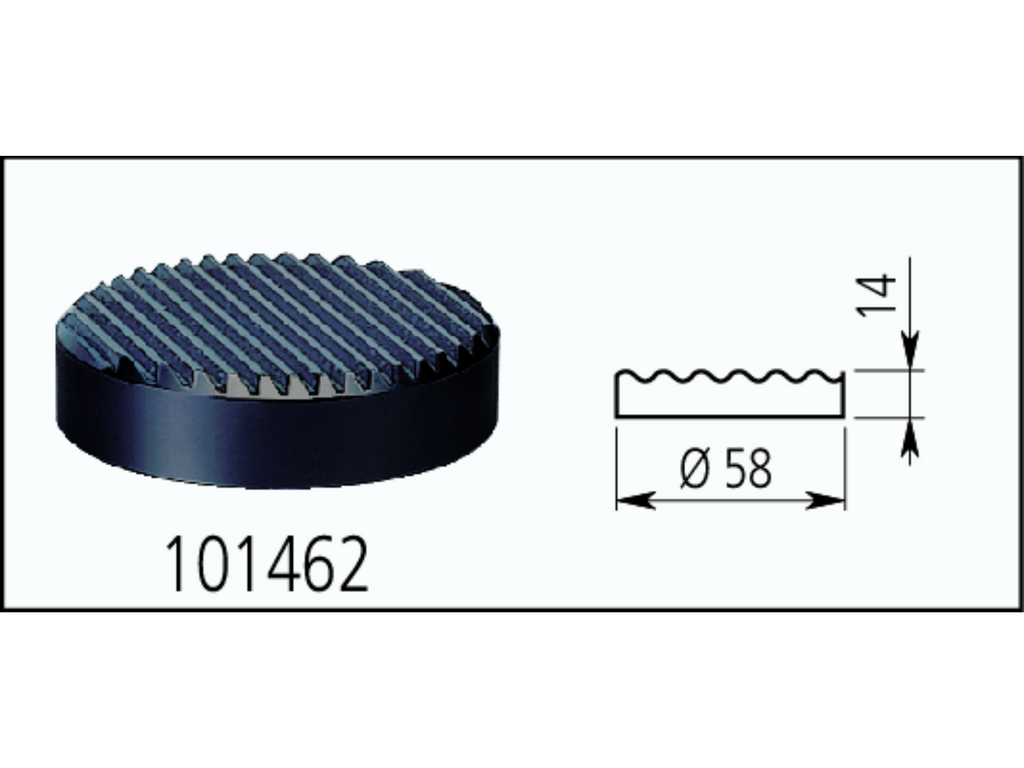

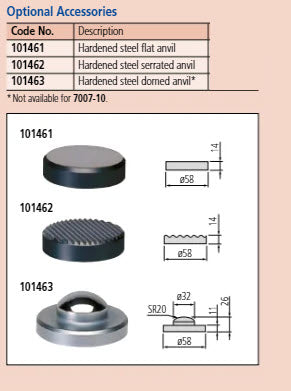

Measuring Table: Serrated (101,462)
Fine adjustment: 1 mm
Stem hole ø: ø 3/8" / 9.53 mm , 8 mm with bush (standard accessory)
Stem hole ø: ø 9,53 mm (ø 8 mm with bush)
Perpendicularity table-stem hole: 0,4/100 mm
Table flatness: 1,3 µm
Mass: 4 kg
All images are for representation only.
