ndicating Micrometer with Button Left 0-25mm 510-141 Mitutoyo
ndicating Micrometer with Button Left 0-25mm 510-141 Mitutoyo
ndicating Micrometer with Button Left 0-25mm 510-141 Mitutoyo
ndicating Micrometer with Button Left 0-25mm 510-141 Mitutoyo
Roll over image to zoom in Click on image to zoom
ndicating Micrometer with Button Left 0-25mm 510-141 Mitutoyondicating Micrometer with Button Left 0-25mm 510-141 Mitutoyondicating Micrometer with Button Left 0-25mm 510-141 Mitutoyondicating Micrometer with Button Left 0-25mm 510-141 Mitutoyo

ndicating Micrometer with Button Left 0-25mm 510-141 Mitutoyo

MitutoyoSKU: 510-141
List price: £769.00 Offer price: £561.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

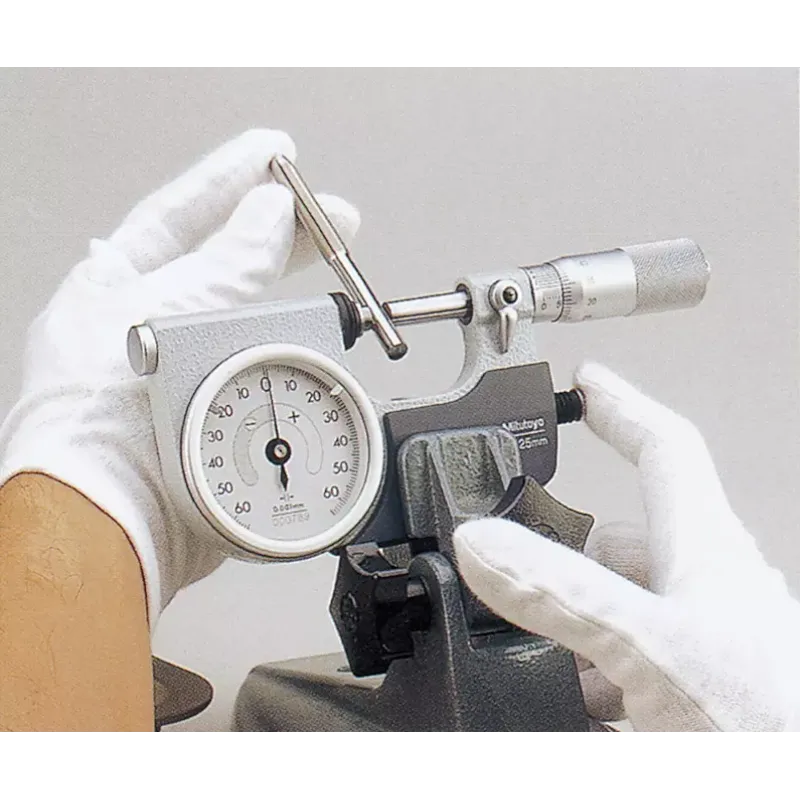

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product
Mitutoyo 04AZA124 Workpiece Stopper 510 style Micrometer 23mm
Part number: 04AZA124  → View product
Mitutoyo 04AZA125 Workpiece Stopper Indicating Micrometer 20.5mm
Part number: 04AZA125  → View product
Mitutoyo 04AZA126 Workpiece Stopper Indicating Micrometer 15mm
Part number: 04AZA126  → View product

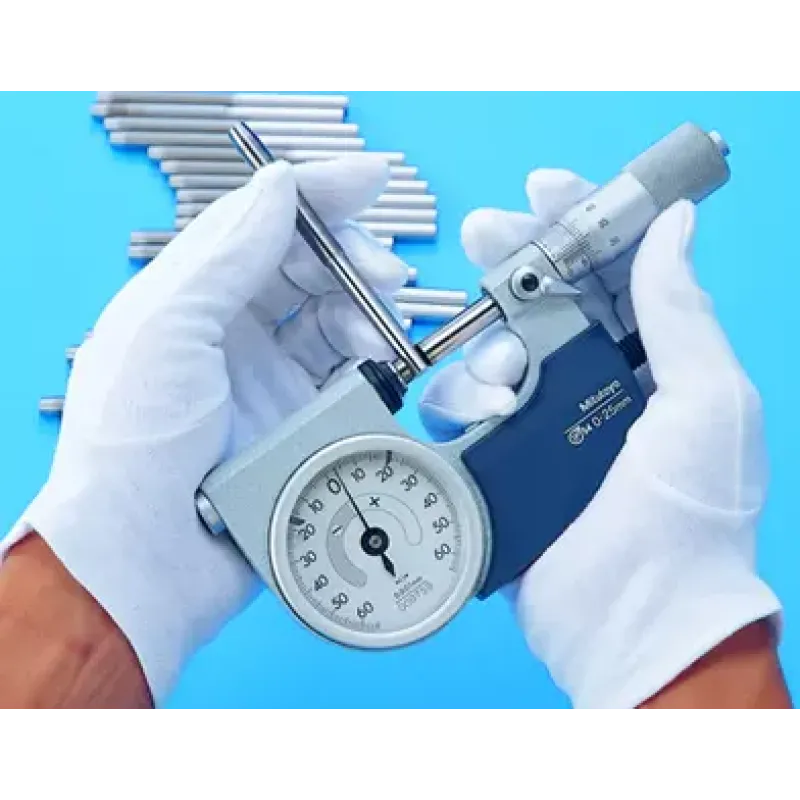

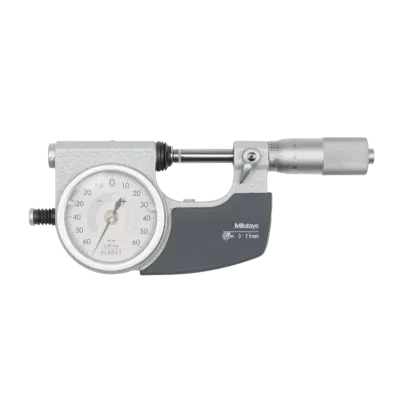

This is an Indicating Micrometer with a dial comparator that enables you to take fast and highly accurate measurements. It offers you the following benefits:

  • It is easy to use when operated one-handed due to retractable anvil.
  • Protection level IP54 and large and easy to read characters on the dial plate
  • Large dial comparator for easy reading (+/- 0,06 mm)
  • Tolerance markers for GO/NG measurements
  • 8 mm spindle diameter gives you easy positioning and highly accurate measurements.

  • Manufacturer:Mitutoyo
  • Model:510-141
  • SKU:IDM-25RL
  • Available:In stock
  • Model:IDM-25RL
  • Accuracy dial comparator:1 μm
  • Anvil retracting stroke:2 mm

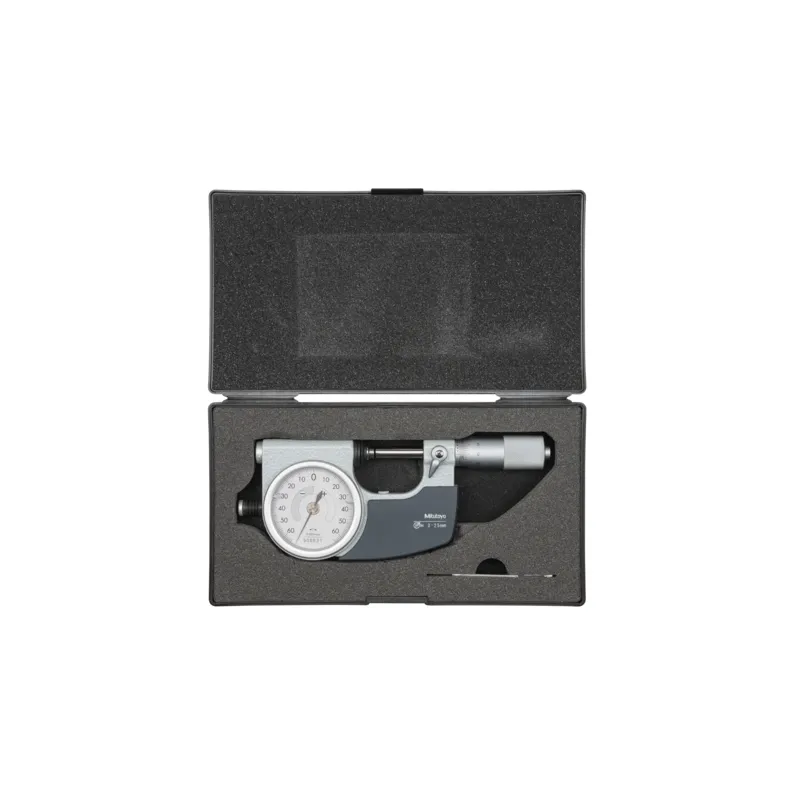

  • Delivered:Including box, spanner
  • Digital/Analog:Analog
  • Flatness:0,3 μm
  • Graduation:0,001 mm
  • Inch-Metric:Metric
  • Indicating range:±0.06 mm
  • Mass:520
  • Measuring face:Carbide-tipped, micro-lap finish, ø8 mm
  • Measuring force:5 - 10
  • Measuring spindle:With spindle lock, ø8 mm, spindle pitch 0,5 mm
  • Operating button:Left
  • Parallelism:0,6 μm
  • Range:0 - 25
  • Repeatability:0.4 µm
  • Scale:Thimble and sleeve satin chrome finish, ø21 mm
  • Spindle feed error:3

No application information is currently available.
