Mitutoyo Indicating Micrometer with Button Right 0-25mm 510-121

Roll over image to zoom in Click on image to zoom

Mitutoyo Indicating Micrometer with Button Right 0-25mm 510-121

Name: Mitutoyo Indicating Micrometer with Button Right 0-25mm 510-121
Brand: Mitutoyo
SKU: 510-121
Price: 517.3 GBP
Availability: InStock

MitutoyoSKU: 510-121

All prices exclude VAT, which will be added at checkout.

Price:

£517.30 £739.00

Quantity:

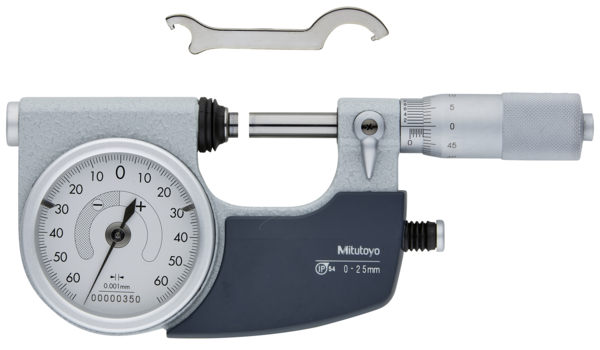

A Mitutoyo non-digital, rapid-retraction-anvil indicating micrometer equipped with a high resolution dial indicator.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	510-121
Measuring Range	0-25mm
Graduation	.001mm
Accuracy	+/-.002mm
Unit of Measurement	Metric
Display Type	Analogue
IP Rating	IP54
Measuring Force	5-10N
Type	Indicating
Graduation on Thimble	.001mm
Repeatability	.0004mm
Flatness	.0003mm
Parallelism	.0006mm
Calibration Code	CAL5 B1

Digital/Analog:	Analog

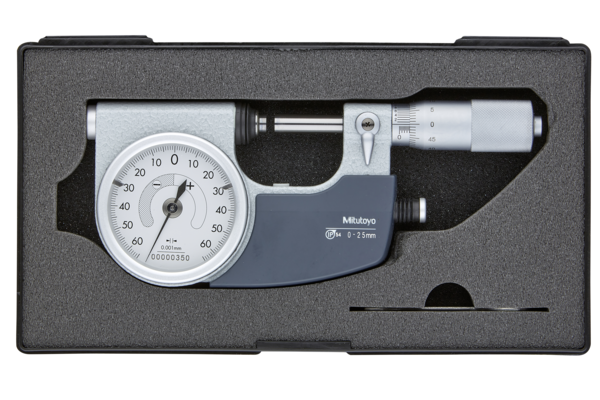

Delivered:	Including box, spanner
Inch-Metric:	Metric
Range:	0 - 25 mm
Indicating range:	±0.06 mm
Anvil retracting stroke:	2 mm
Spindle feed error:	3 µm
Accuracy dial comparator:	1 μm
Repeatability:	0.4 µm
Flatness:	0,3 μm
Parallelism:	0,6 μm
Graduation:	0,001 mm
Measuring face:	Carbide-tipped, micro-lap finish, ø8 mm
Measuring spindle:	With spindle lock, ø8 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:	5 - 10 N
Operating button:	Right
Delivered:	Including box, key
Mass:	520 g
