MahrSKU: 5440752
Mahr logo

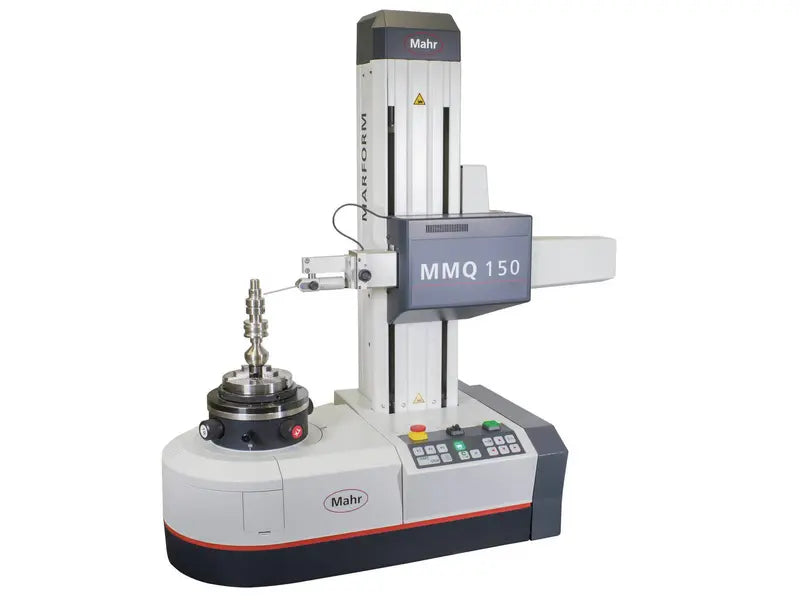

MarForm MMQ 150

Art. no. 5440752

Entry into high precision cylinder form measuring technology with semi automatic sequence

MarForm MMQ 150 – The ideal entry into the world of form metrology. The MMQ 150 was designed for accuracy, speed and, easy operation — all at a very attractive price/performance ratio.

MarForm MMQ 150 | Art. no. 5440752

Pos.-/Meas. path X-axis 1 50 mm

Pos.-/Meas. path Z-axis 250 mm

Positioning speed C-axis 0.2 - 6 1/min

Positioning speed X axis 0.5 - 30 mm/s

Positioning speed Z-axis 0.5 - 100 mm/s

Workpiece diameter max. (mind moment of inertia max.) 210 mm

Axial running deviation C-axis 0.02 + 0.0001

Straightness deviation Z-axis 0.4 µm/100 mm

Reference temperature 20 °C

Centering and tilting table manual

Table diameter 160 mm

Table load max. 20 kg

Probe system Tactile 1D

Permissible humidity max. 70 % relative humidity; non-condensing

Scope of delivery Probe system T20W (incl. probe arm ⌀ 3 x 60 mm)


  • Mechanical engineering:
    Bearings, ball screws, shafts, sockets, rotational bushings
  • Measurement close to production:
    PLC and end-of-line testing
  • Automotive:
    Steering, brake system, gearbox, motor
  • Medicine:
    Hip and knee endoprostheses, medical screws, teeth implants
