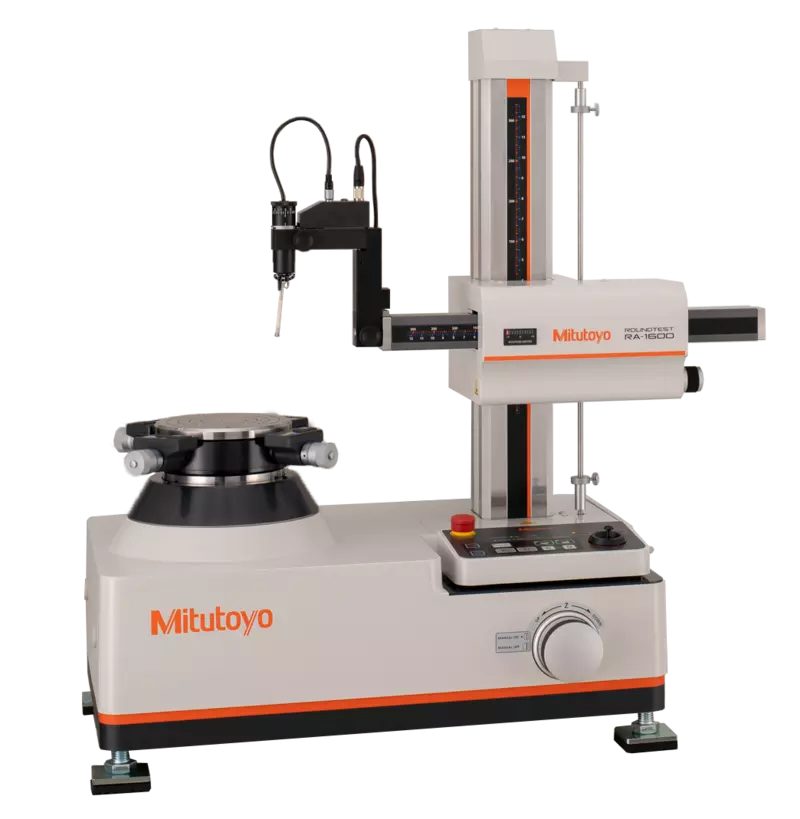

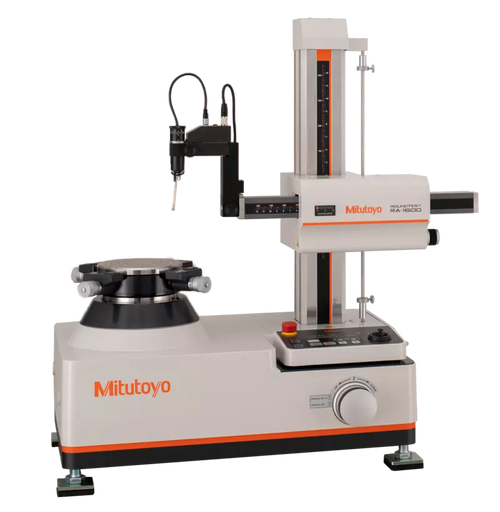

RA-1600 [inch/mm] Item number: 211-733-13 Mitutoyo Roundtest

This is a PC-compliant form measuring system which allows you to measure roundform geometry like cylindricity.

The Roundtest RA-1600 offers the following benefits:

• It is equipped with a high accurate turntable accuracy of (0.02+0.0006H) µm.
• You can carry out simple & accurate centering and leveling of the workpiece with D.A.T. (Digital Adjustment Table).

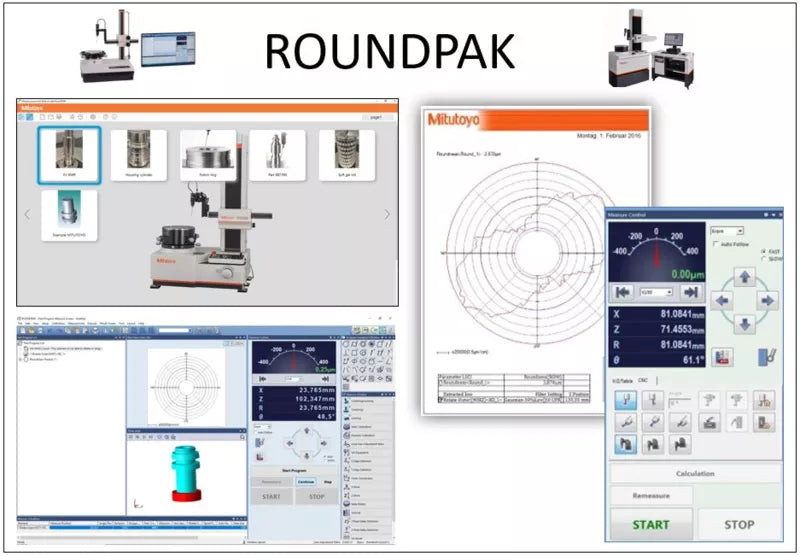

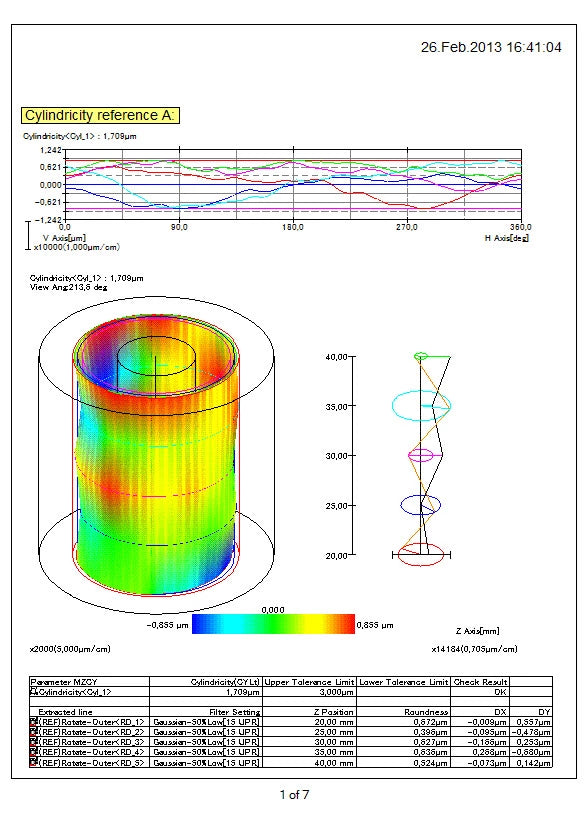

• The user friendly software, ROUNDPAK, gives you easy drag and drop usage.
• ROUNDPAK also has easy-to-use part programming and single measurement functions.
• A remote control box is including allowing you easy operation.
• There is also an auto follow function for easy and quick pre-centering of the workpiece.

Specification

Model: RA-1600 Inch-Metric:Inch/Metric

Rotational accuracy:

Radial:(0,02+0,0006H) µm

H: Measuring height from turntable surface (mm)

Axial:(0,02+0,0006X) µm

X: Radial distance from center (mm)

Rotational speed:4, 6, 10 rpm

Max. probing Ø:280mm

Max. turntable loading [kg]:25

Centering range:±3 mm

Leveling range:±1°Max.

probing height:300 mm above turntable surface

Max. probing depth:91 mm (minimum ID : ø32 mm) 50 mm (minimum ID : ø7 mm)

Straightness: 0.2 µm / 100 mm 0.3 µm / 300 mm

Parallelism with turntable axis:1.5 µm / 300 mm

Software: ROUNDPAK
