MahrSKU: 5440691

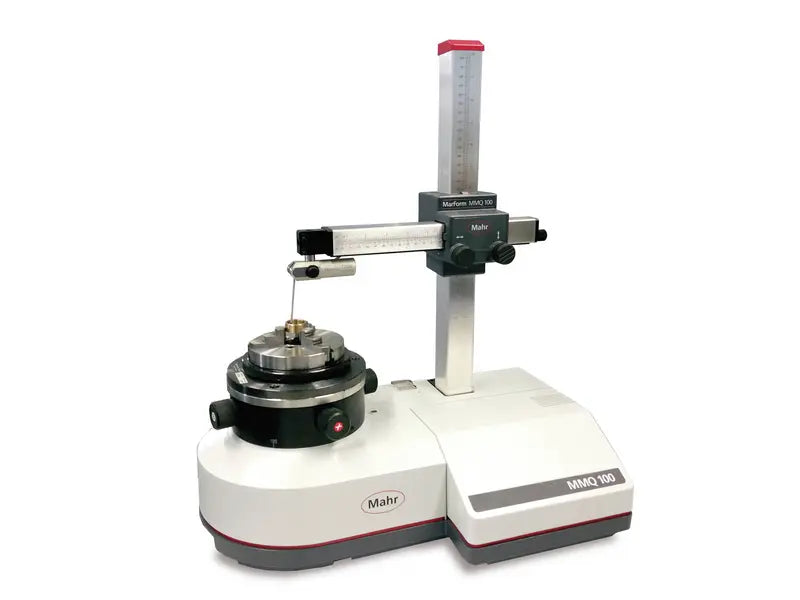

MarForm MMQ 100 plus

Art. no. 5440691

Compact entry into high-precision roundness measurement technology

The MarForm MMQ 100 plus form tester offers the perfect solution for simple yet precise measurement tasks such as roundness, concentricity or waviness analysis (FFT) in production-related environments. In combination with its low weight and compact size , it is very mobile and cost-effective to operate.

MarForm MMQ 100plus | Art. no. 5440691

Pos.-/Meas. path X-axis 180 mm

Pos.-/Meas. path Z-axis 300 mm

Positioning speed C-axis 0.2 - 6 1/min

Positioning speed X axis 0.5 - 30 mm/s

Positioning speed Z-axis 0.5 - 100 mm/s

Workpiece diameter max. (mind moment of inertia max.) 210 mm

Reference temperature 20 °C

Centering and tilting table manual

Table diameter 160 mm

Table load max. 20 kg

Probe system Tactile 1D

Permissible humidity max. 60 %

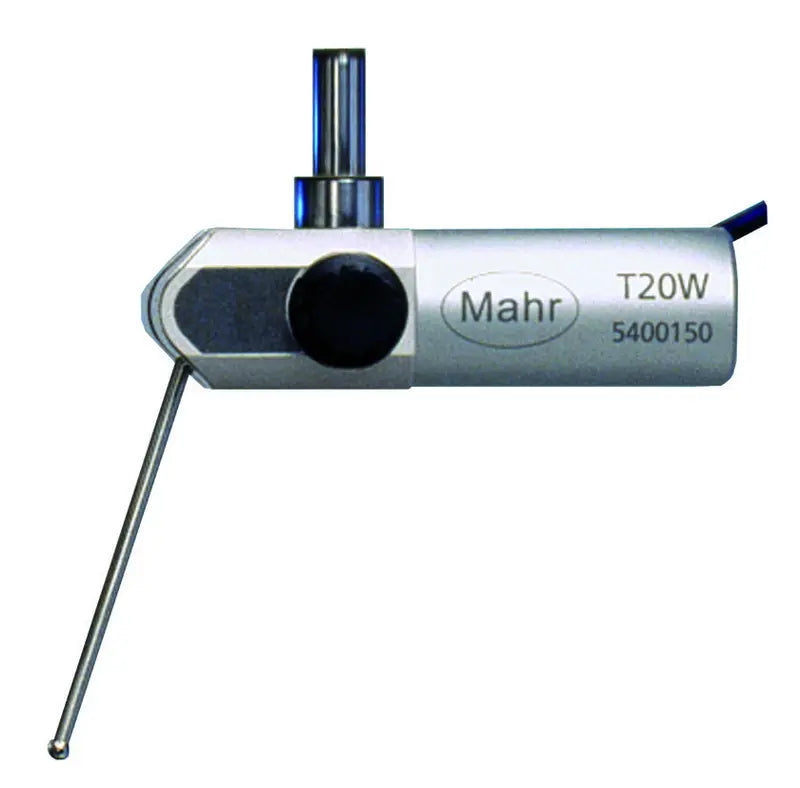

Scope of delivery Probe system T20W (incl. probe

arm ⌀ 3 x 60 mm)

  • Mechanical engineering:
    Bearings, ball screws, shafts, sockets, rotational bushings
  • Measurement close to production:
    PLC and end-of-line testing
  • Automotive:
    Steering, brake system, gearbox, motor
  • Medicine:
    Hip and knee endoprostheses, medical screws, teeth implants

Product Video

Product Documents

Product Document MMQ100 Plus Roundness measuring machine Mahr 5440691 Click to open the PDF document
