MitutoyoSKU: 211-546-13

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:
£18,450.00

All prices exclude VAT, which will be added at checkout.

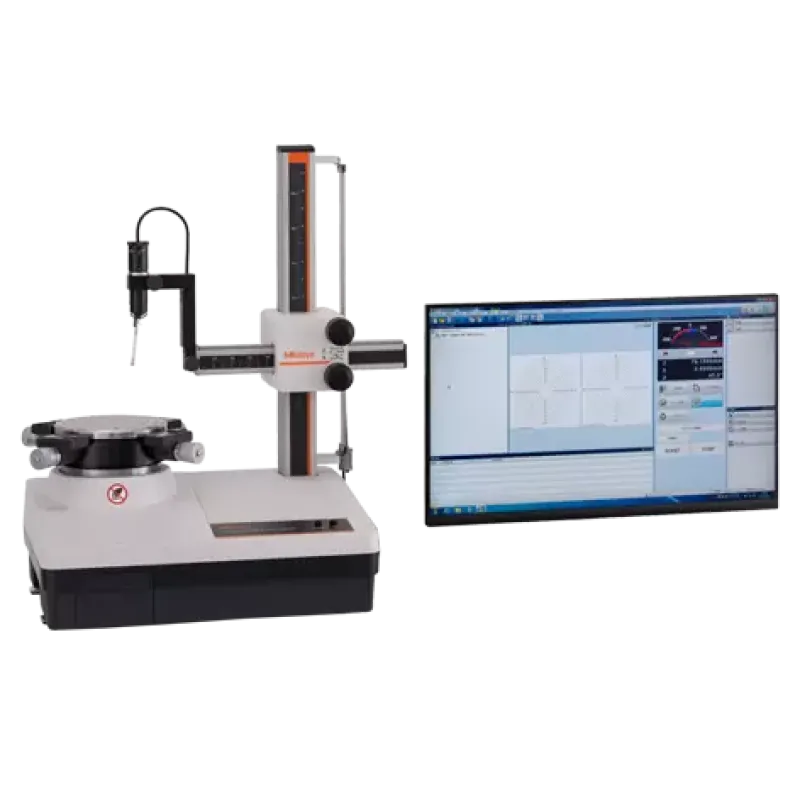

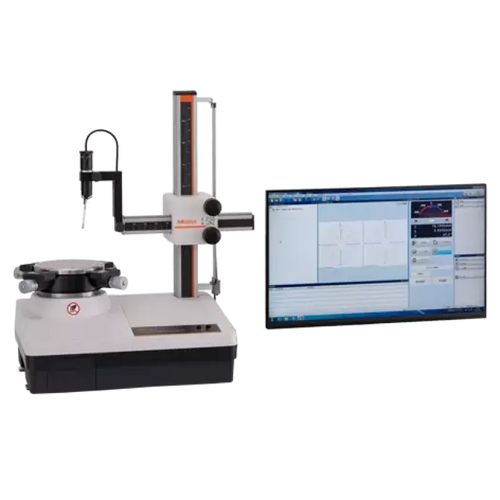

This is a compact roundness tester with a mechanical adjustment table function.

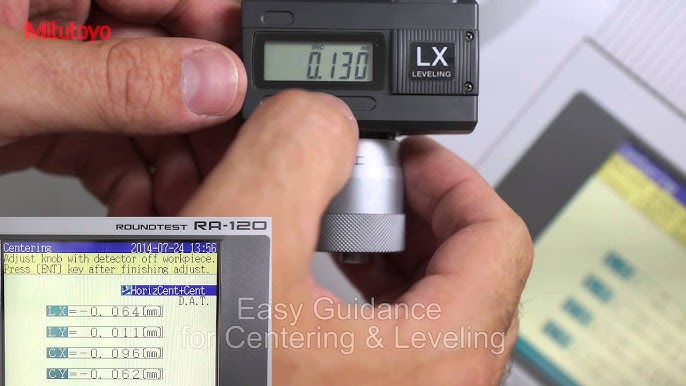

It makes the task of centering & leveling easy enough for even an untrained operator to perform, through these four simple steps:

  1. Preliminary measurement of two cross sections on the workpiece.
  2. The centering and leveling adjustment values are displayed.
  3. The mechanical heads on the rotary table are adjusted to match the values displayed.
  4. Centering and leveling is complete. [Centering range : ±3 mm - Leveling range : ±1°]

Model:RA-120 with mechanical turntable

Inch-Metric:Inch/Metric

Max. probing diameter:280mm

Max. workpiece ø:440mm

Max. turntable loading:25kg

  • Mechanical engineering:
    Bearings, ball screws, shafts, sockets, rotational bushings
  • Measurement close to production:
    PLC and end-of-line testing
  • Automotive:
    Steering, brake system, gearbox, motor
  • Medicine:
    Hip and knee endoprostheses, medical screws, teeth implants

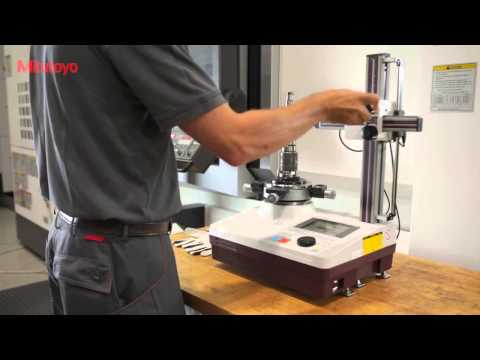

🎥 Product Video

Product Documents

PDF
Product Brochure Mitutoyo RA-120P [inch/mm] Mechanical table [inch/mm] Item number: 211-546-13 Click the PDF logo or anywhere on this card
