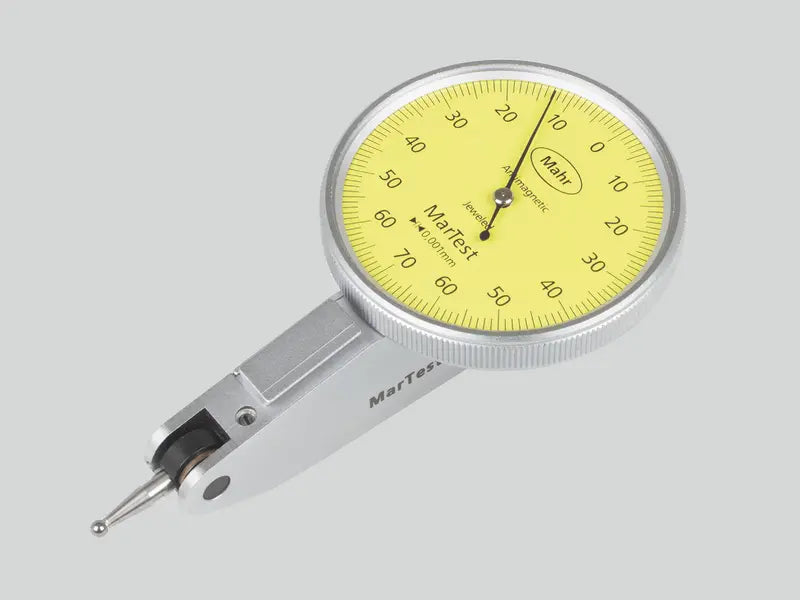

Test indicator MarTest 800 SGE
Factory standard
Measuring range: ± 0.07 mm
Graduation value mm: 0.001
Package contains: spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8, test certificate, instruction manual, case
Specification
- Measuring range mm ± 0.07mm
- Product type 800 SGE
- Graduation value mm 0.001mm
- Standard DIN 2270
- Figure on dial face 0-70-0
- Range per rev. in mm 0.8 mm
- Span of error fe (µm) 5 µm
- Total span of error fges (µm) 6 µm
- Measuring value hysteresis fu (µm) 3 µm
- Partial measuring range ft (µm) 5 µm
- Repeatability fw (µm) 3 µm
- Measuring force 0.2 N
- Scale diameter 38 mm
