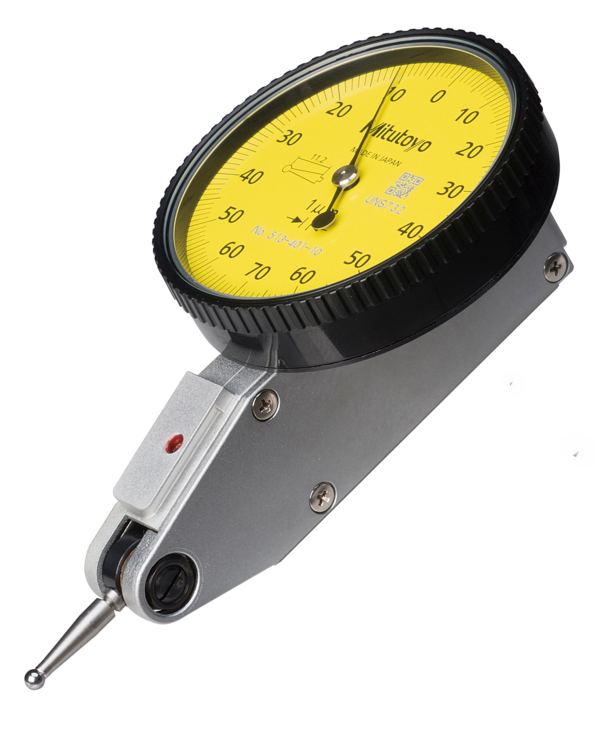

Dial Test Indicator, Horizontal Type 0,14mm, 0,001mm, 8mm Stem 513-401-10E

Roll over image to zoom in Click on image to zoom

Dial Test Indicator, Horizontal Type 0,14mm, 0,001mm, 8mm Stem 513-401-10E

Name: Dial Test Indicator, Horizontal Type 0,14mm, 0,001mm, 8mm Stem 513-401-10E
Brand: Mitutoyo
SKU: 513-401-10E
Price: 94.0 GBP
Availability: InStock

MitutoyoSKU: 513-401-10E

All prices exclude VAT, which will be added at checkout.

Price:

£94.00 £138.00

Quantity:

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

Product Information
Part Number	513-401-10E
Measuring Ranges	0.14mm
Resolution	0.001mm
Graduation	.001mm
Accuracy	.003mm
Unit of Measurement	Metric
Measuring Force	≤0.3N
Type	Horizontal
Length	14.7mm
Repeatability	.001mm
Dial Reading	0-70-0
Hysteresis	.002mm
Stem	4mm & 8mm
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Type:	Basic set
Delivered:	In a box with stem ø8 mm, stylus ø2 mm
Range:	0.14 mm
Dial reading:	0-70-0
Graduation:	0.001 mm
MPE any 10 scale divisions:	2 µm
MPE any 1/2 revolution:	3 µm
MPE measuring range:	3 µm
H MPE (Hysteresis):	2 µm
R MPE (Repeatability):	1 µm
Measuring force:	0,01 - 0,3 N
Carbide stylus tip ø2 mm No.:	103010
Mass:	45 g
Contact point:	Thread M 1.7 x 0.35
