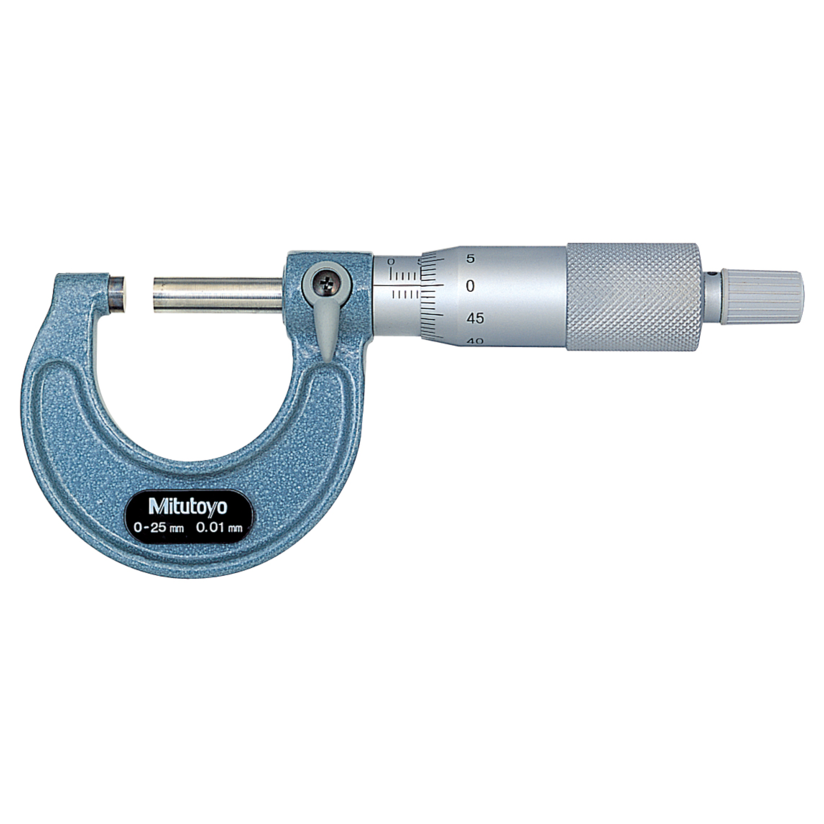

Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137
Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137
Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137
Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137
Roll over image to zoom in Click on image to zoom
Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137

Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137

MitutoyoSKU: 103-137
List price: £59.50 Offer price: £42.50 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
MHC 7PC MICROMETER ANVIL SET FOR USE ON MICROMETERS 600-0107
Part number: 600-0107  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product
Optical Parallels Set, Metric 0-25mm 157-903
Part number: 157-903  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
Mitutoyo Ball Attachment 0,2" for 6,35mm Spindle 101468E
Part number: 101468E  → View product
Mitutoyo Ball Attachment 5mm for 6,35mm Spindle 101468M
Part number: 101468M  → View product

Metric Analogue Outside Micrometer - Ratchet Stop

Series 103

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.


      Specifications

      • Digital/Analog: Analog
      • Inch-Metric: Metric
      • Graduation: 0,01 mm
      • Maximum Permissible Error J MPE: ±2 µm
      • Accuracy: ±2 µm
      • Flatness: 0,6 µm
      • Parallelism: 2 µm
      • Measuring spindle: With spindle lock, ø6,35 mm (?300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
      • Scale: Thimble and sleeve satin chrome finish, ø18 mm
      • Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
      • Delivered: Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
      • Mass: 175 g

      No application information is currently available.

      Product Documents

      Product Document Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137 Click to open the PDF document
