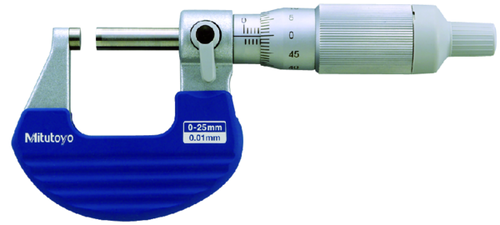

Mitutoyo Ratchet Thimble Micrometer 0-25mm, 0,01mm 102-701

MitutoyoSKU: 102-701
List price: £79.10 Offer price: £58.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Recommended Alternative

Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137
Mitutoyo Metric Analogue Outside Micrometer 0-25mm, Ratchet Stop 103-137 SKU: 103-137 Price: £42.50 View recommended alternative

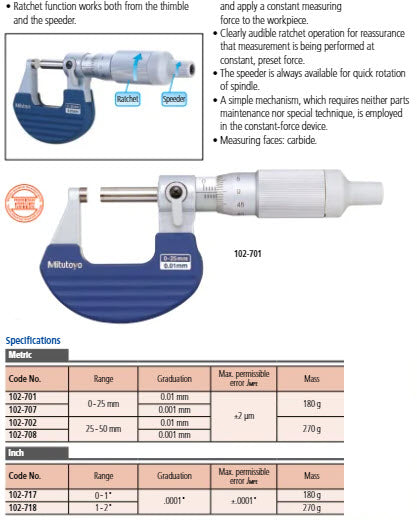

A Mitutoyo non-digital micrometer with a combined ratchet thimble/speeder to guarantee repeatable measurement. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions.
Features
Digital/Analog:
Analog
Delivered:
Including box, key, certificate of inspection
Inch-Metric:
Metric
Range:
0 - 25 mm
Max.
Permissible Error
J MPE:
±2 µm
Flatness:
0.6 µm
Parallelism:
2 µm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Delivered:
Including box, key, setting standard (from 25 mm upward),
certificate of inspection
Mass:
180 g

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
