Mitutoyo 103-139-10 (0.01mm) Ratchet Stop Economy Design Micrometer 50-75mm
Mitutoyo 103-139-10 (0.01mm) Ratchet Stop Economy Design Micrometer 50-75mm
Mitutoyo 103-139-10 (0.01mm) Ratchet Stop Economy Design Micrometer 50-75mm
Mitutoyo 103-139-10 (0.01mm) Ratchet Stop Economy Design Micrometer 50-75mm
Roll over image to zoom in Click on image to zoom
Mitutoyo 103-139-10 (0.01mm) Ratchet Stop Economy Design Micrometer 50-75mmMitutoyo 103-139-10 (0.01mm) Ratchet Stop Economy Design Micrometer 50-75mmMitutoyo 103-139-10 (0.01mm) Ratchet Stop Economy Design Micrometer 50-75mmMitutoyo 103-139-10 (0.01mm) Ratchet Stop Economy Design Micrometer 50-75mm

Mitutoyo 103-139-10 (0.01mm) Ratchet Stop Economy Design Micrometer 50-75mm

MitutoyoSKU: 103-139-10
List price: £106.00 Offer price: £77.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
£25.00 per item
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£18.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

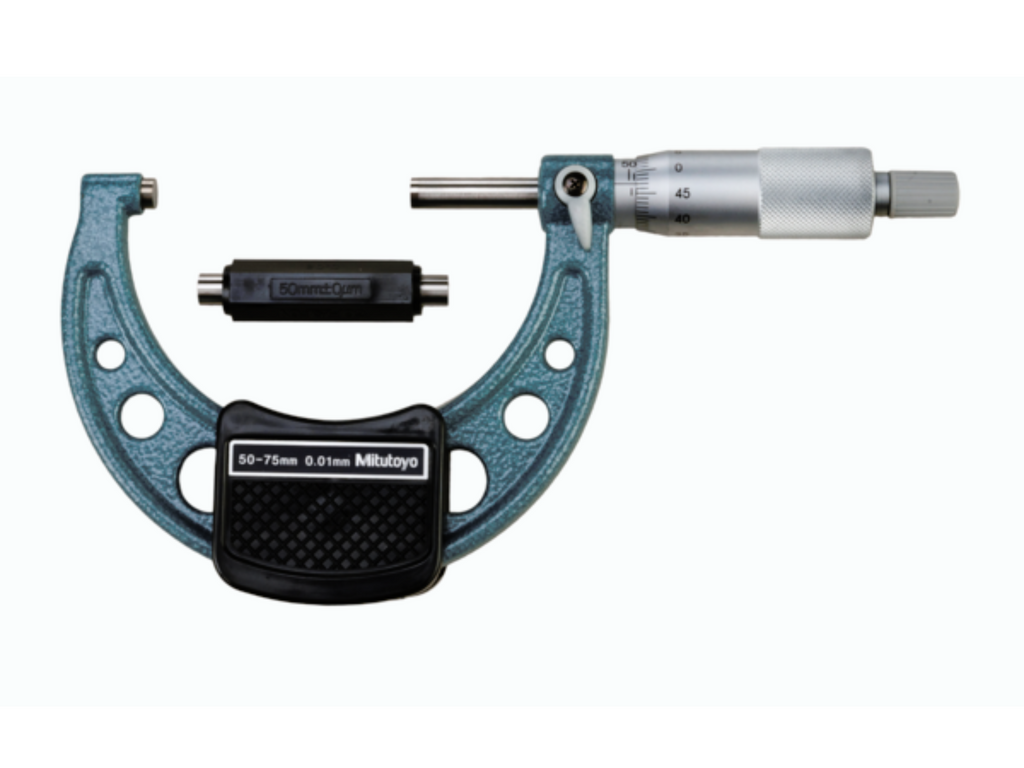

Metric Analogue Outside Micrometer 50-75mm, Ratchet Stop, 103-139-10

Series 103
A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.

      All images are for representation only.

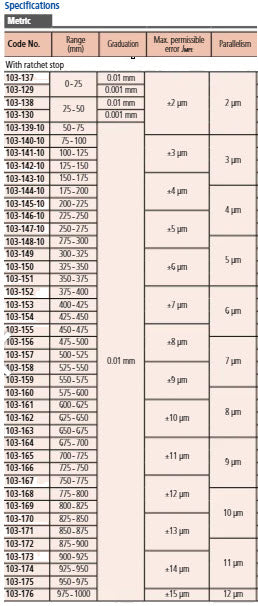

      Specifications

      • Digital/Analog: Analog
      • Inch-Metric: Metric
      • Range: 50- 75 mm
      • Graduation: 0,01 mm
      • Maximum Permissible Error J MPE: ±2 µm
      • Accuracy: ±2 µm
      • Flatness: 0,6 µm
      • Parallelism: 2 µm
      • Measuring spindle: With spindle lock, ø6,35 mm (?300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
      • Scale: Thimble and sleeve satin chrome finish, ø18 mm
      • Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
      • Delivered: Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
      • Mass: 175 g

      No application information is currently available.

      No videos or documents are currently available.
