MitutoyoSKU: 102-303
List price: £119.00 Offer price: £87.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£18.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Recommended Alternative

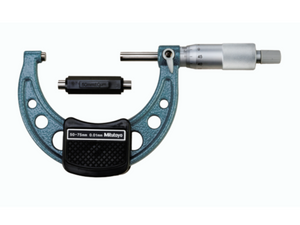

Mitutoyo 103-139-10 (0.01mm) Ratchet Stop Economy Design Micrometer 50-75mm
Mitutoyo 103-139-10 (0.01mm) Ratchet Stop Economy Design Micrometer 50-75mm SKU: 103-139-10 Price: £77.00 View recommended alternative
A Mitutoyo basic, cost effective, non-digital micrometer. Cutaway frame behind anvil helps measurement in confined spaces. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
  • Range: 50-75mm
  • Resolution: 0.01mm
  • Accuracy: ± 0.002mm
  • Parallelism: 0.002mm
  • Flatness: 0.006mm
  • Measuring Force: 5-10N
  • Measuring face: Carbide-tipped, micro-lap finish
  • Measuring Spindle: With spindle lock, 6.35mm diameter
  • Spindle pitch: 0.5mm
  • Scale: Thimble and sleeve satin chrome finish, ø18mm
  • Ratchet stop

No application information is currently available.

Product Documents

Product Document Mitutoyo Outside Micrometer with Heat Ins. Plate 50-75mm, 0,01mm 102-303 Click to open the PDF document
