MitutoyoSKU: 525-241-11
Price: POA

This provides all-in-one surface roughness and contour measurement within one drive unit.

The Formtracer Avant FTA-H3000 offers you the following benefits:

  • You can carry out simultaneous analysis of roughness and contour with one measurement.
  • The measuring range is enormous with Z1 = 16 mm
  • High accurate measurement
  • It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS and customized settings).
  • The high drive speed reduces the total measurement time.
  • Optional retrofit kits for pure surface roughness or dual contour measurement, detector change using the “hot swap method”

Formtracer Avant FTA - S4 H3000-E [mm] X=100mm; Z2=300mm 525-241-11 Mitutoyo

  • Rating:  0 reviews
  • Manufacturer:Mitutoyo
  • Model:525-241-11
  • SKU:FTA - S4 H3000-E
  • Available:In stock
  • Model:FTA - S4 H3000-E
  • Accuracy:X = (0,8+0,01L) µm [L: Drive length (mm)] Z1 = (0,5+2H/100) µm [H: Measurment height from the horizontal position (mm)]

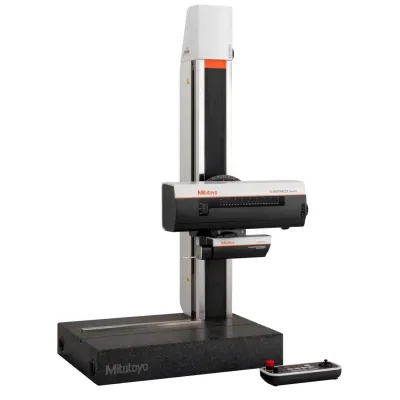

  • Base material:Granite
  • Detector measuring force [mN]:0,75
  • Drive speed:X = 0 - 80 mm/s Z2 = 0 - 30 mm/s
  • Granite base size (WxD) [mm]:600 x 450
  • Inch-Metric:Metric

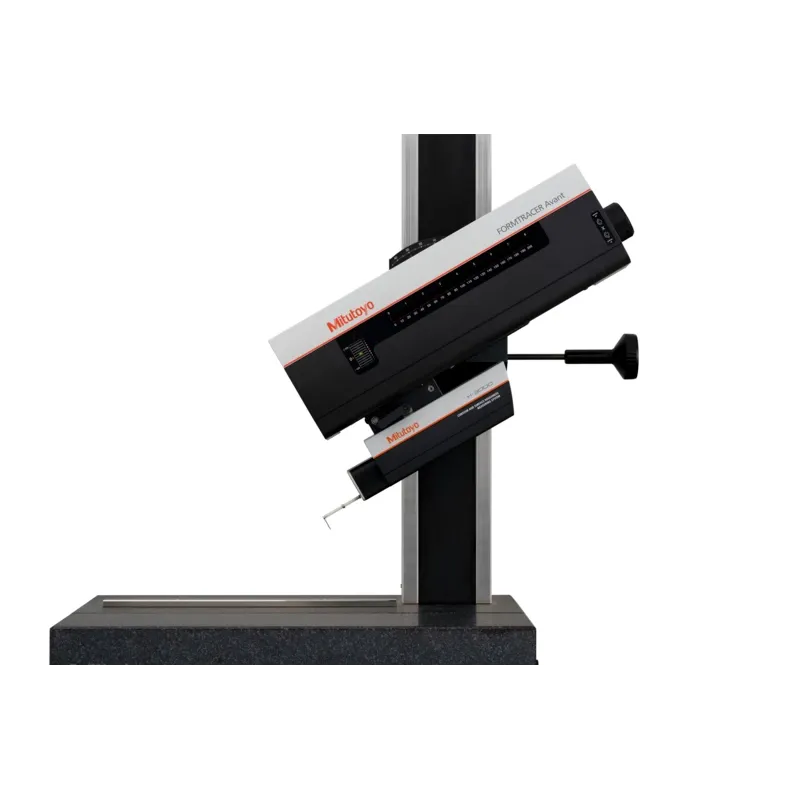

  • Inclining range:±45°
  • Mass:140
  • Measuring range:Z1 = 16 mm
  • Measuring speed:Roughness up to 0,5 mm/s, contour up to 30 mm/s
  • Software:FORMTRACEPAK Allows control of all axes, optional motor-driven Y-axis table and rotary table for efficient automated measurements. Contour and roughness evaluation can be performed in one measurement. Software with very useful features such as real-time data, CAD comparison, contour connection, multi-language support, report generation and much more as standard.
  • Straightness noise:Rz = 30 nm ( 0,2 mm/s, 0,8 x 5, λs = 2,5 µm, λc = 0,8 mm)
  • Traverse:100 mm
  • Traverse straightness:Pt: 0,2 µm /100 mm

No application information is currently available.

No videos or documents are currently available.
