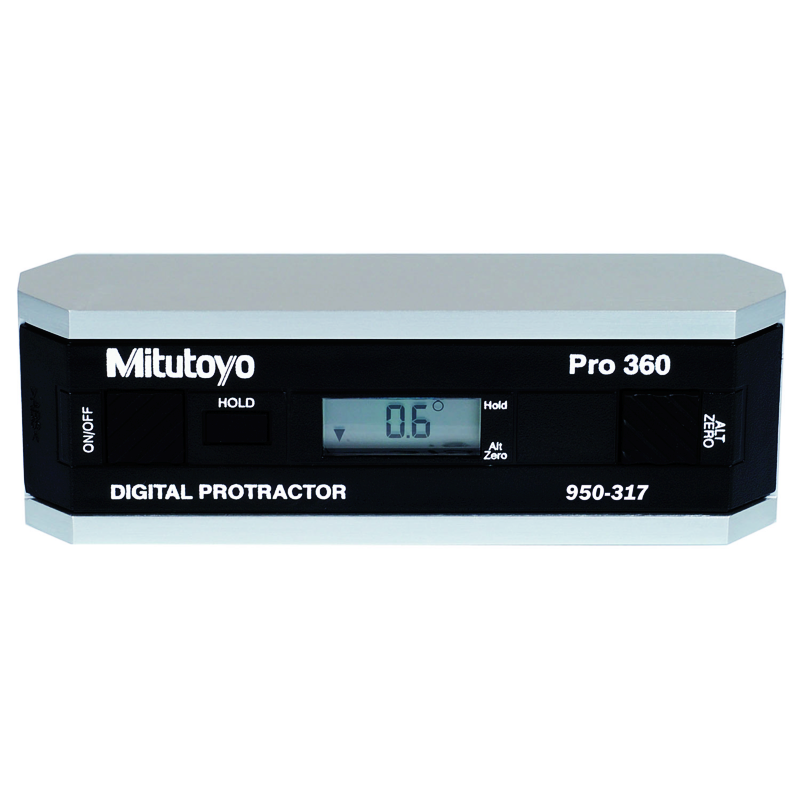

Mitutoyo 950-317 Digital Precision Level 360° Protractor Model Pro 360
Mitutoyo 950-317 Digital Precision Level 360° Protractor Model Pro 360
Mitutoyo 950-317 Digital Precision Level 360° Protractor Model Pro 360
Mitutoyo 950-317 Digital Precision Level 360° Protractor Model Pro 360
Roll over image to zoom in Click on image to zoom
Photo 1 of 4 More photos — use the arrows
Mitutoyo 950-317 Digital Precision Level 360° Protractor Model Pro 360Mitutoyo 950-317 Digital Precision Level 360° Protractor Model Pro 360Mitutoyo 950-317 Digital Precision Level 360° Protractor Model Pro 360Mitutoyo 950-317 Digital Precision Level 360° Protractor Model Pro 360

Mitutoyo 950-317 Digital Precision Level 360° Protractor Model Pro 360

MitutoyoSKU: 950-317
List price: £384.00 Offer price: £280.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
A digital Mitutoyo protractor/level designed for making angle measurements in the vertical plane. The instrument can be zeroed at any angular position and directly indicates the angle between the stock and that position when in use to a resolution of 0.1 degree. When zeroed at the horizontal, readings are provided in the same manner as a spirit level, but with the advantage of a range extending all the way to the vertical.
Features
Range:
360° (4 x 90°)
Max. permissible error
(degrees):
Horizontal : 0.1
Vertical : 0.2
Repeatability
(degrees):
0.1
Power supply:
Standard battery (9 V) 6LR61
Data output:
No
Battery life:
Approx. 500 hours
Sensitivity
(degrees):
0.1

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo 950-317 Digital Precision Level 360° Protractor Model Pro 360 Click to open the PDF document
