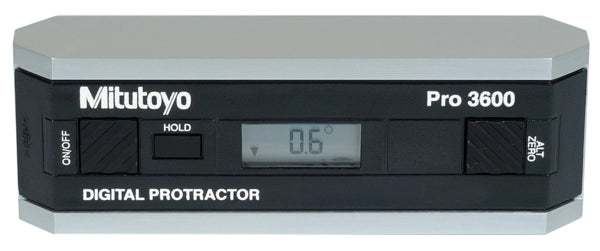

Mitutoyo 950-318 Digital Precision Level 360° Protractor Model Pro 3600

Roll over image to zoom in Click on image to zoom

Mitutoyo 950-318 Digital Precision Level 360° Protractor Model Pro 3600

Name: Mitutoyo 950-318 Digital Precision Level 360° Protractor Model Pro 3600
Brand: Mitutoyo
SKU: 950-318
Price: 461.02 GBP
Availability: InStock

MitutoyoSKU: 950-318

All prices exclude VAT, which will be added at checkout.

Price:

£461.02 £623.00

Quantity:

A high-resolution Mitutoyo digital protractor/level designed for making precise angle measurements in the vertical plane. The instrument can be zeroed at any angular position and directly indicates the angle between the stock and that position when in use to a resolution of 0.01 degree over a range of +/- 10 degrees (0.1 degree over the remainder of the range). When zeroed at the horizontal, readings are provided in the same manner as a spirit level, but with the advantage of a range extending all the way to the vertical.

Customer Support

Contact our customer support team via email or call our hotline number

Phone - 02476 644661

Secure payments

We offer multiple secure payment options

Product Information
Part Number	950-318
Resolution	.01° (0° to 9.99°)<br> .1° (10° to 90°)
Accuracy	±.05° (0°-10°), ±.2° (10°-80°), .1° (80°-90°)
Type	Digital Level
Weight	332g
Repeatability	±.05°

Range:	360° (4 x 90°)
Max. permissible error (degrees):	0.05 (0 to 10) 0.1 (80 to 90) 0.2 (10 to 80)
Repeatability (degrees):	0.05
Power supply:	Standard battery (9 V) 6LR61

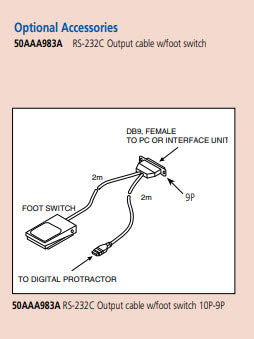

Data output:	Yes
Battery life:	Approx. 500 hours
Sensitivity (degrees):	0.01 (0 to 9.99) 0.1 (10 to 90)
Mass:	0.3 k
