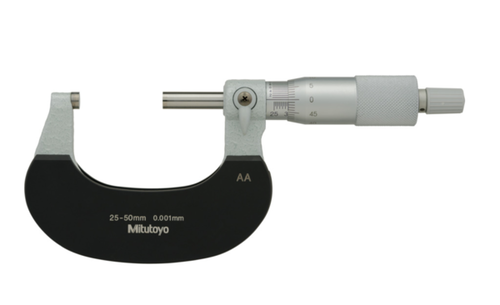

Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312
Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312
Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312
Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312
Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312
Roll over image to zoom in Click on image to zoom
Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312

Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312

MitutoyoSKU: 102-312
List price: £155.00 Offer price: £113.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£18.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Recommended Alternative

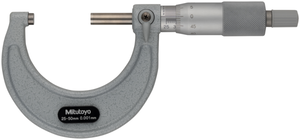

Mitutoyo Metric Analogue Outside Micrometer 25-50mm, Ratchet Stop 103-130
Mitutoyo Metric Analogue Outside Micrometer 25-50mm, Ratchet Stop 103-130 SKU: 103-130 Price: £64.00 View recommended alternative
A Mitutoyo basic, cost effective, non-digital micrometer. Cutaway frame behind anvil helps measurement in confined spaces. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:
Including box, key setting standard, certificate of inspection
Inch-Metric:
Metric
Range:
25 - 50 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±2 µm
Flatness:
0,6 µm
Parallelism:
2 ?m
Remarks:
Ratched Stop
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Mass:
270 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312 Click to open the PDF document
