Point Micrometer with Carbide Tip 0-25mm, 15° Tip 112-165

Roll over image to zoom in Click on image to zoom

Point Micrometer with Carbide Tip 0-25mm, 15° Tip 112-165

Name: Point Micrometer with Carbide Tip 0-25mm, 15° Tip 112-165
Brand: Mitutoyo
SKU: 112-165
Price: 182.0 GBP
Availability: InStock

MitutoyoSKU: 112-165

All prices exclude VAT, which will be added at checkout.

Price:

£182.00 £268.00

Quantity:

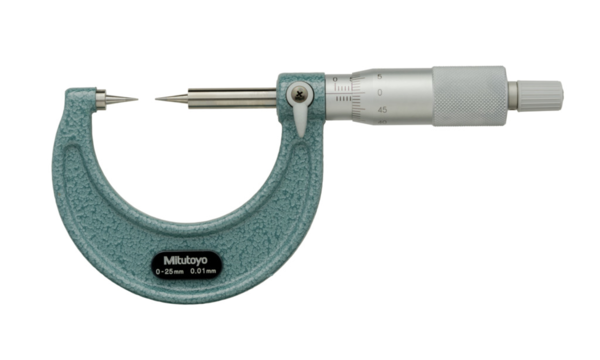

A Mitutoyo non-digital micrometer provided with pointed spindle and anvil to enable measurement within curved, slotted features, such as drilling-bit web thicknesses. A ratchet stop guarantees repeatable measurement.

Customer Support

Contact our customer support team via email or call our hotline number

Phone - 02476 644661

Secure payments

We offer multiple secure payment options

Product Information
Part Number	112-165
Measuring Ranges	0-25mm
Accuracy	+/_.003mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	3-8N
Type	Point
Constant Force Device	Ratchet Stop
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Metric
Range:	0 - 25 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±3 µm
Measuring face:	Carbide pointed or hardened steel spindle and anvil, measuring point radius 0.3 mm
Tip:	15°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N

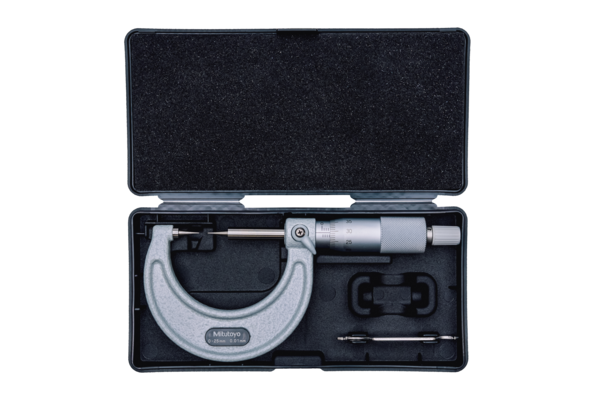

Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	205 g
