Point Micrometer with Hardened Tip 0-25mm, 15° Tip 112-153

MitutoyoSKU: 112-153
List price: £155.00 Offer price: £113.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product

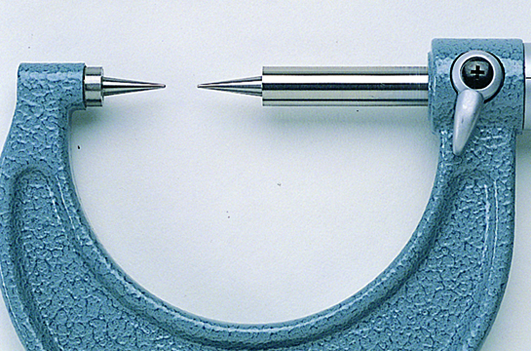

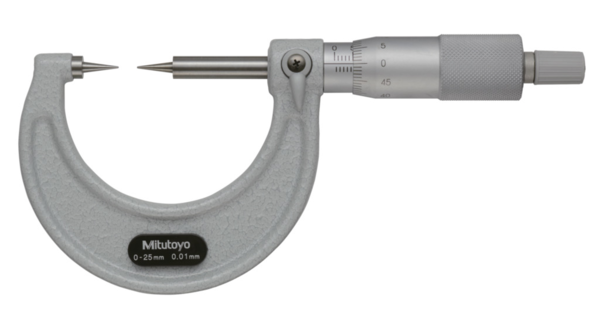

A Mitutoyo non-digital micrometer provided with pointed spindle and anvil to enable measurement within curved, slotted features, such as drilling-bit web thicknesses. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner
Inch-Metric:
Metric
Range:
0 - 25 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±3 µm
Measuring face:
Carbide pointed or hardened steel spindle and anvil, measuring point radius 0.3 mm
Tip:
15°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
205 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Point Micrometer with Hardened Tip 0-25mm, 15° Tip 112-153 Click to open the PDF document
