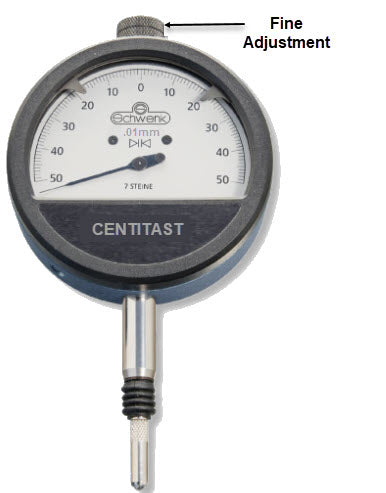

Schwenk Precision Mechanical Indicator Centicast reading 0.01 mm DIN 879 MR 0.5 mm Code 61100000
Schwenk Precision Mechanical Indicator Centicast reading 0.01 mm DIN 879 MR 0.5 mm Code 61100000
Schwenk Precision Mechanical Indicator Centicast reading 0.01 mm DIN 879 MR 0.5 mm Code 61100000
Roll over image to zoom in Click on image to zoom
Schwenk Precision Mechanical Indicator Centicast reading 0.01 mm DIN 879 MR 0.5 mm Code 61100000Schwenk Precision Mechanical Indicator Centicast reading 0.01 mm DIN 879 MR 0.5 mm Code 61100000Schwenk Precision Mechanical Indicator Centicast reading 0.01 mm DIN 879 MR 0.5 mm Code 61100000

Schwenk Precision Mechanical Indicator Centicast reading 0.01 mm DIN 879 MR 0.5 mm Code 61100000

SchwenkSKU: 61100000
Price: £185.00 Excluding VAT

Optional Services

Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
Brand: SCHWENK
Length measuring range: 0,5 mm
Type: CENTICAST
Scale value: 0,01 mm
Free stroke: 2.5 mm
DIN: 879

Application
For measuring lengths. Ideal for comparative measuring instruments and flatness and straightness measurements.

Execution

  • Impact-protected thanks to mechanically decoupled measuring mechanism
  • Compact dimensions, only 18.6 mm high
  • 7 bearing jewels for highest accuracy
  • Ball-guided probe rod with bellows for protection against oil and other contaminants
  • Clamping shank diameter 8 mm h6
  • Adjustable tolerance marks
  • Fine adjustment screw accessible from above, lockable
  • Accuracy according to DIN 879-1

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 Schwenk Precision Mechanical Indicator Centicast reading 0.01 mm DIN 879 MR 0.5 mm Code 61100000 Click to open the PDF document
Product Document 2 Schwenk Precision Mechanical Indicator Centicast reading 0.01 mm DIN 879 MR 0.5 mm Code 61100000 Click to open the PDF document
