Schwenk Precision Mechanical Indicator mytast reading 0.001 mm DIN 879 MR 0.1 mm Code 61000000

SchwenkSKU: 61000000
Price: £185.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
Brand: SCHWENK
Length measuring range: 0,1 mm
Type: mytast
Scale value: 0,001 mm
Free stroke: 3,0 mm
DIN: 879

Application
For measuring lengths. Ideal for comparative measuring instruments and flatness and straightness measurements.

Execution

  • Impact-protected thanks to mechanically decoupled measuring mechanism

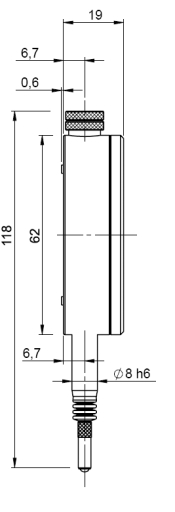

  • Compact dimensions, only 18.6 mm high
  • 7 bearing jewels for highest accuracy
  • Ball-guided probe rod with bellows for protection against oil and other contaminants
  • Clamping shank diameter 8 mm h6
  • Adjustable tolerance marks

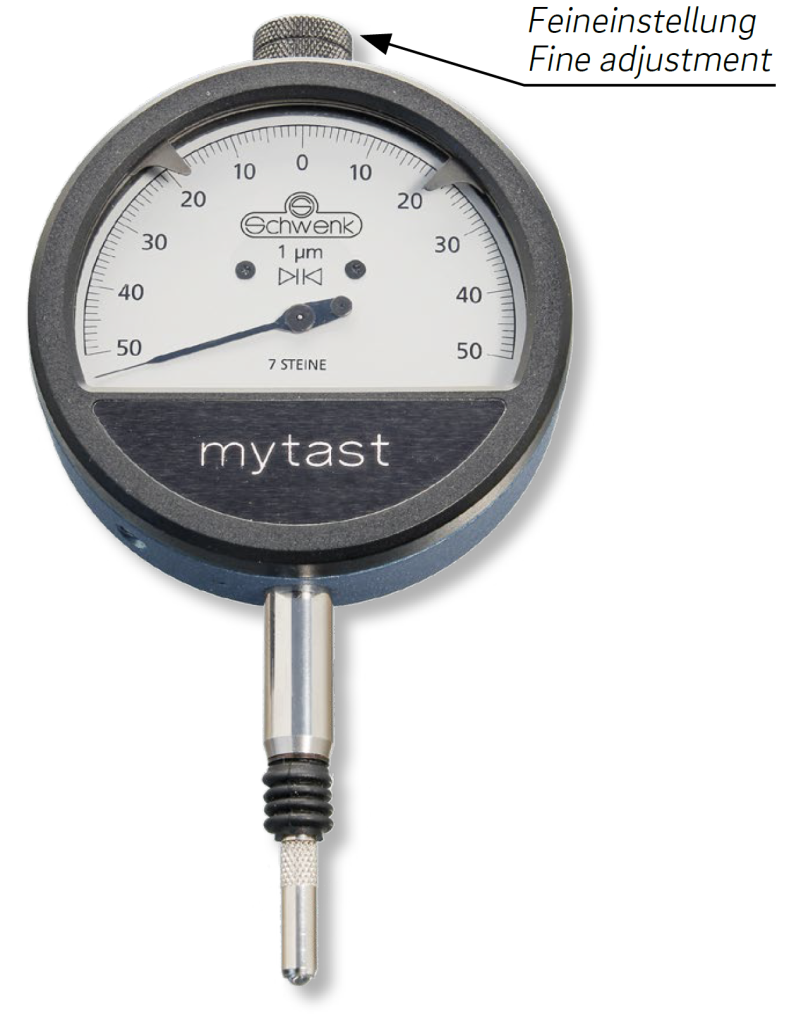

  • Fine adjustment screw accessible from above, lockable
  • Accuracy according to DIN 879-1
