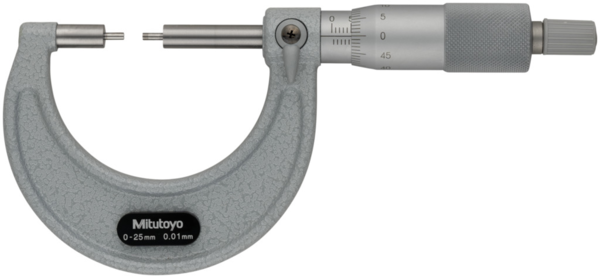

Spline Micrometer 0-25mm, 2mm Measuring Face 111-215

Name: Spline Micrometer 0-25mm, 2mm Measuring Face 111-215
Brand: Mitutoyo
SKU: 111-215
Price: 141.0 GBP
Availability: InStock

MitutoyoSKU: 111-215

List price: £193.00 Offer price: £141.00 Excluding VAT

Quantity:

UKAS Accredited Calibration Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Overview Technical Information Applications Videos & Documents

This Spline Micrometer makes it easy for you to measure grooves and shaped parts.
It offers you the following benefits:

No technical information is currently available.

No application information is currently available.

Product Document Spline Micrometer 0-25mm, 2mm Measuring Face 111-215 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Experienced engineers helping you select the correct measuring solution.

✔️

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation, commissioning and operator training available.

🤝

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Metric
Range:	0 - 25 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±3 µm
Flatness:	0,3 µm
Parallelism:	2 µm
Measuring face:	Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:	Type B, D=2 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	205 g
