Spline Micrometer 0-25mm, 3mm Measuring Face 111-115

MitutoyoSKU: 111-115
List price: £184.00 Offer price: £134.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

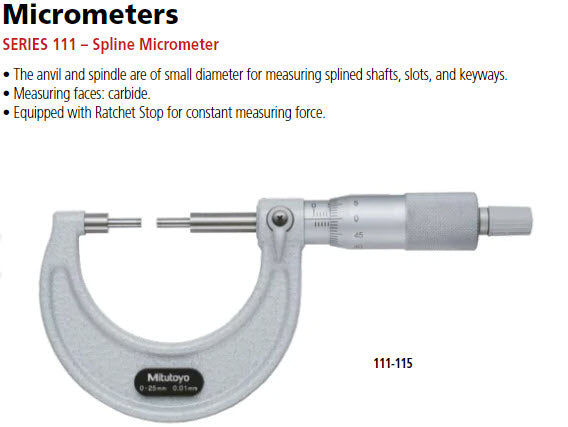

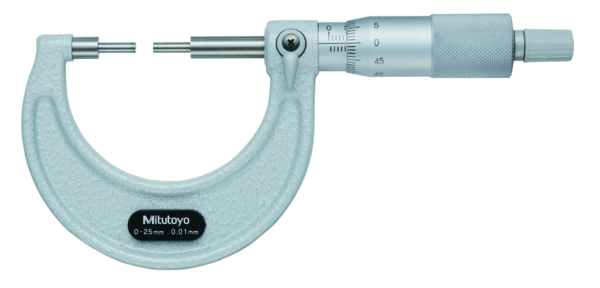

A Mitutoyo non-digital micrometer provided with a spindle and anvil reduced in diameter to enable measurement within slotted features, such as keyways. A ratchet stop guarantees repeatable measurement.

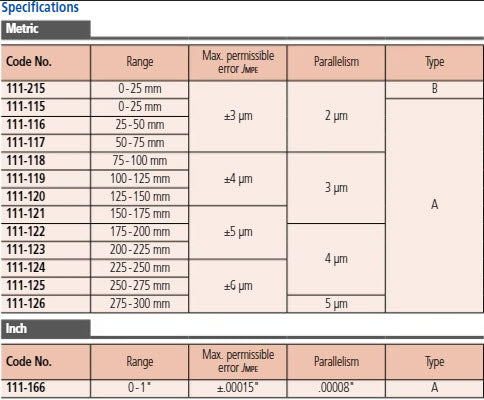

Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner
Inch-Metric:
Metric
Range:
0 - 25 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±3 µm
Flatness:
0,3 µm
Parallelism:
2 µm
Measuring face:
Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:
Type A, D=3 mm
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
205 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Spline Micrometer 0-25mm, 3mm Measuring Face 111-115 Click to open the PDF document
