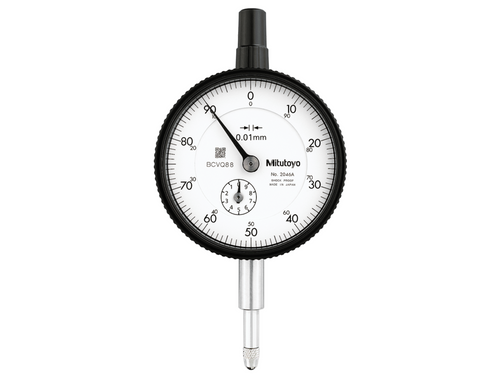

Name: Mitutoyo Standard Indicator, Lug Back, ISO Type, 10mm, 0,01mm 2046A
Brand: Mitutoyo
SKU: 2046A
Price: 34.0 GBP
Availability: InStock

Mitutoyo Standard Indicator, Lug Back, ISO Type, 10mm, 0,01mm 2046A

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

Standard Type, 10 mm Range, 0,01 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Standard Indicator, Lug Back, ISO Type, 10mm, 0,01mm 2046A Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	10 mm
Range per rev.:	1 mm
Dial reading:	±0-100
Graduation:	0.01 mm
Measuring force:	0,4 - 1,4 N
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE measuring range:	13 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Mass:	144 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
