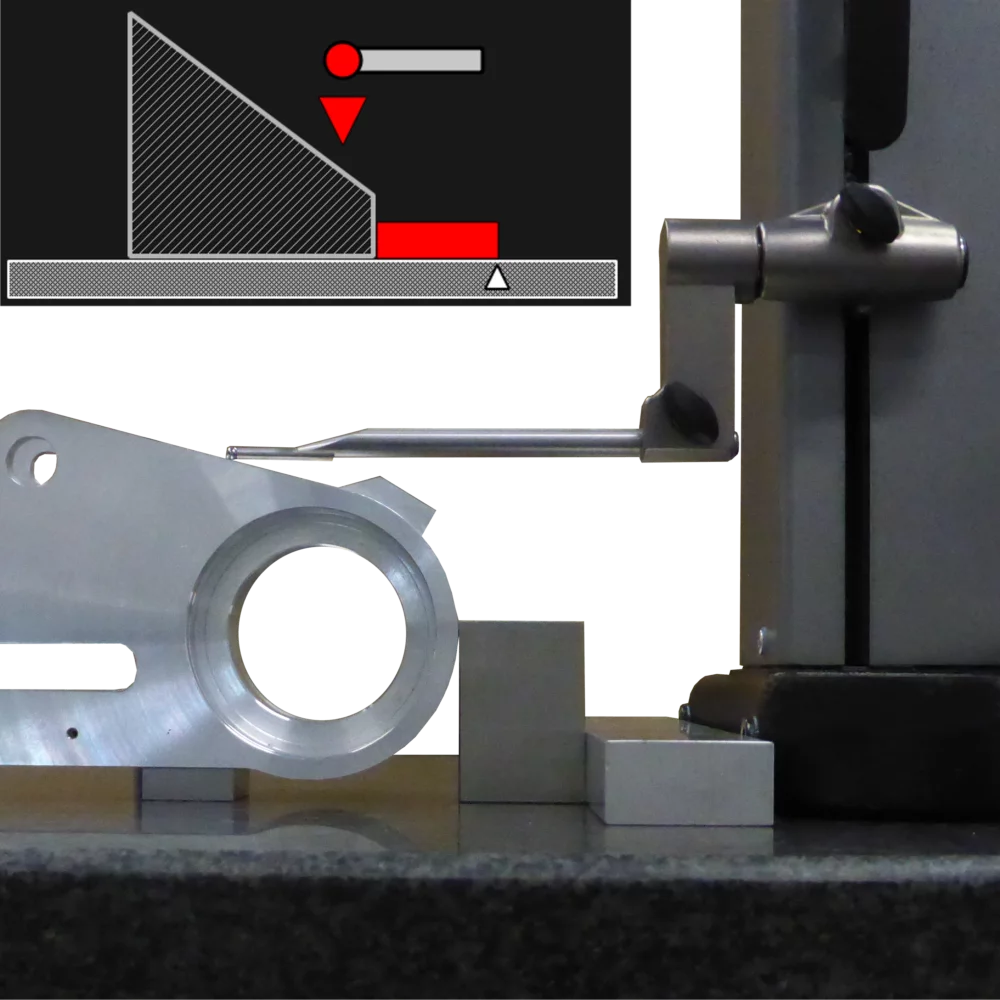

TRIMOS V9 2D HEIGHT GAUGE (0-700mm) 20-V9-700
Digital Height Gauge Features
- Range: 0-710mm (28″)
- Resolution: 0.0001mm (0.00001″)
- Accuracy: ± 0.0012mm + L(mm)/1000
- Repeatability: 0.0004mm (Ø: 0.001mm)
- Measuring range with extension: 1028mm (40″)
- Force: 0.75-1.5N
- 2D, programming & stats
- Touch screen
- Manual or motor driven
- Fine adjustment mechanism
- Electronic probe for squareness measurements
- Air cushion for easy displacement on the measuring table
- Electronically adjustable measuring force
- RS232 and USB interfaces
- WiFi & Bluetooth options available
- Smart reverse available
