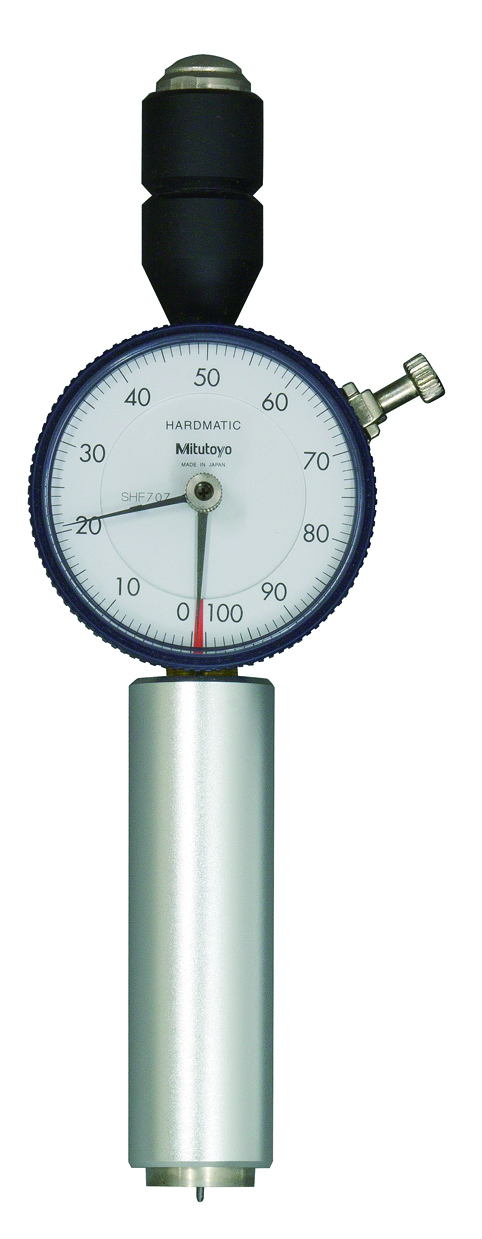

811-331-10 HH-331 Durometer Type A Long/Analogue Shore A Durometer HH-300 Series ø 18 mm
811-331-10 HH-331 Durometer Type A Long/Analogue Shore A Durometer HH-300 Series ø 18 mm
811-331-10 HH-331 Durometer Type A Long/Analogue Shore A Durometer HH-300 Series ø 18 mm
Roll over image to zoom in Click on image to zoom
Photo 1 of 3 More photos — use the arrows
811-331-10 HH-331 Durometer Type A Long/Analogue Shore A Durometer HH-300 Series ø 18 mm811-331-10 HH-331 Durometer Type A Long/Analogue Shore A Durometer HH-300 Series ø 18 mm811-331-10 HH-331 Durometer Type A Long/Analogue Shore A Durometer HH-300 Series ø 18 mm

811-331-10 HH-331 Durometer Type A Long/Analogue Shore A Durometer HH-300 Series ø 18 mm

MitutoyoSKU: 811-331-10
List price: £781.00 Offer price: £687.28 Excluding VAT

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

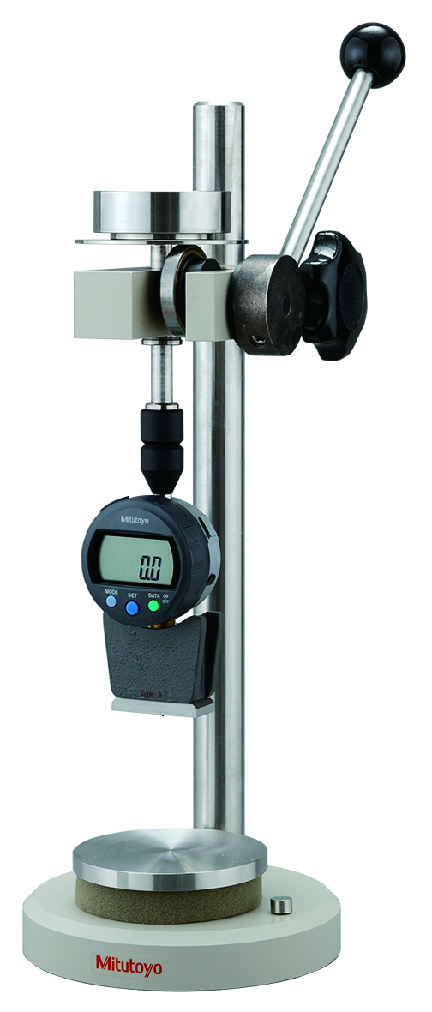

811-013 Testing stand Shore A compact types Shore Durometer HH-300 Series
Part number: 811-013  → View product

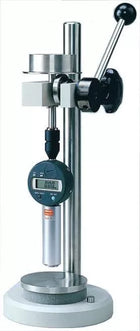

811-019 Testing stand Shore A all types Shore Durometer HH-300 Series
Part number: 811-019  → View product
811-012 Testing stand Shore D all types Shore Durometer HH-300 Series
Part number: 811-012  → View product
35, 60, 90 Shore A Shore Hardness Reference Material Set Item number: 218000MIT
Part number: 218000MIT  → View product
Shore A Test Specimen Set (3pcs.) with Works Calibration Certificate acc. to ISO 48-4 Code 218000
Part number: 218000  → View product

Description

These compact digital/dial durometers in the Shore A scale can test a range of different materials and offer you the following benefits:
  • You can use them for testing the hardness of the materials including soft rubber, elastomers, natural rubber, casting resin, neoprene, polyesters, soft PVC, leather, etc.

Specification

Model:
HH-331
Shore Scale:
Shore A
Display:
Analog Dial
Indenter b:
ø 1,25 mm
Indenter d:
ø 0,79 mm
?:
35°
Pressure foot a:
ø 3 mm
Pressure foot f:
ø 18 mm
Indenter protrusion:
2,5 mm
Spring force
WE, WA, WD:
WA=550+75 HA [mN]
Dimensions (WxDxH):
188x68x35 mm
Mass:
0.32 kg
Connector cable for:
HH-300 Series
PIN:
Flat
USB-ITN:
06AFM380F
DP-1VA (264-505):
959149
IT-016U 264-016-10 Hardmatic table:
937387

No technical information is currently available.

No application information is currently available.
