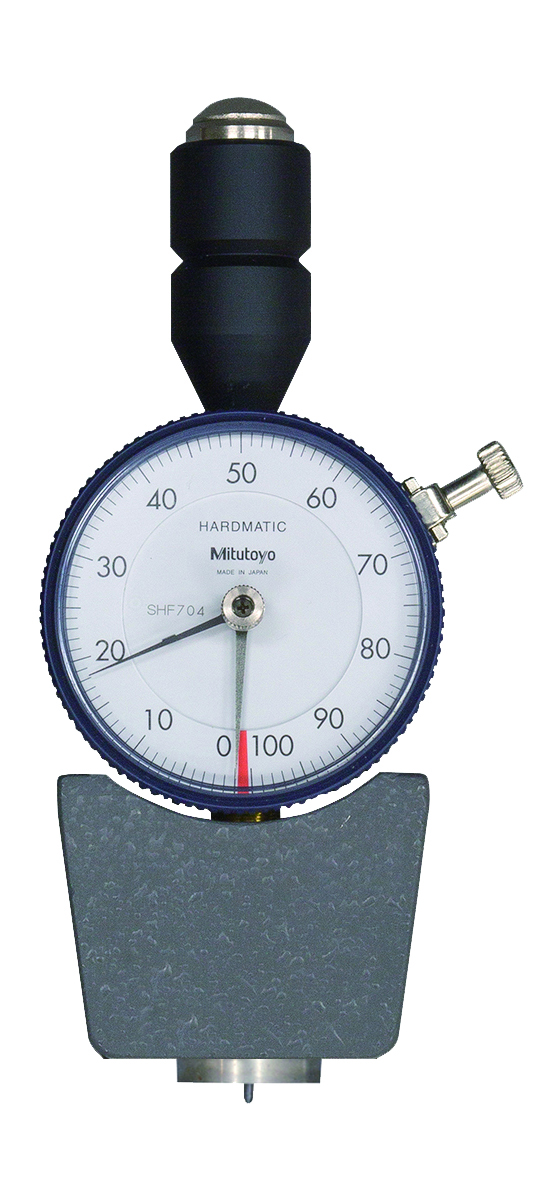

811-335-11 HH-335-01 Durom. Type A Compact/Analogue Shore A Durometer HH-300 Series ø 18 mm

Roll over image to zoom in Click on image to zoom

811-335-11 HH-335-01 Durom. Type A Compact/Analogue Shore A Durometer HH-300 Series ø 18 mm

Name: 811-335-11 HH-335-01 Durom. Type A Compact/Analogue Shore A Durometer HH-300 Series ø 18 mm
Brand: Mitutoyo
SKU: 811-335-11
Price: 595.76 GBP
Availability: InStock

MitutoyoSKU: 811-335-11

List price: £677.00 Offer price: £595.76 Excluding VAT

Quantity:

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

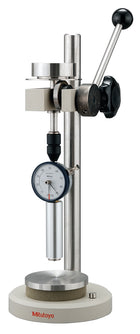

811-012 Testing stand Shore D all types Shore Durometer HH-300 Series +£1,909.60 Part number: 811-012 → View product

811-013 Testing stand Shore A compact types Shore Durometer HH-300 Series +£1,909.60 Part number: 811-013 → View product

Shore A Test Specimen Set (3pcs.) with Works Calibration Certificate acc. to ISO 48-4 Code 218000 +£280.00 Part number: 218000 → View product

35, 60, 90 Shore A Shore Hardness Reference Material Set Item number: 218000MIT +£246.00 Part number: 218000MIT → View product

Recommended Alternatives

Select an alternative below to view its full details.

Sort alternatives Choose price or brand order

KERN® Analogue Shore hardness tester HBA 100-0, Measuring range Shore [Max] 100 HA Readability Shore [d] 1 HA Tolerance (% of [Max]) 3%Brand: KernSKU: HBA 100-0 Price: £125.00 View this alternative →

Hildebrand Code 222805, Model HD3000 Shore A Hardness Tester Without Drag Pointer DIN ISO 7619-1, ISO 868, ISO 7619, ASTM D 2240 (Linear Ball Bearings)Brand: HildebrandSKU: 222805 Price: £430.00 View this alternative →

Hildebrand Code 2228051, Model HD3000 Shore A Hardness Tester With Drag Pointer DIN ISO 7619-1, ISO 868, ISO 7619, ASTM D 2240 (Linear Ball Bearings)Brand: HildebrandSKU: 2228051 Price: £490.00 View this alternative →

REX 1600-A Durometer Description : Type A DurometerBrand: RexSKU: 1600-A Price: £569.00 View this alternative →

811-331-10 HH-331 Durometer Type A Long/Analogue Shore A Durometer HH-300 Series ø 18 mmBrand: MitutoyoSKU: 811-331-10 Price: £687.28 View this alternative →

Overview Technical Information Applications Videos & Documents

These compact digital/dial durometers in the Shore A scale can test a range of different materials and offer you the following benefits:

You can use them for testing the hardness of the materials including soft rubber, elastomers, natural rubber, casting resin, neoprene, polyesters, soft PVC, leather, etc.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 811-335-11 HH-335-01 Durom. Type A Compact/Analogue Shore A Durometer HH-300 Series ø 18 mm Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Model:	HH-335-01
Shore Scale:	Shore A
Display:	Analog Dial
Indenter b:	ø 1,25 mm
Indenter d:	ø 0,79 mm
?:	35°
Pressure foot a:	ø 3 mm
Pressure foot f:	ø 18 mm
Indenter protrusion:	2,5 mm
Spring force WE, WA, WD:	WA=550+75 HA [mN]
Dimensions (WxDxH):	146x68x34 mm
Mass:	0.27 kg
