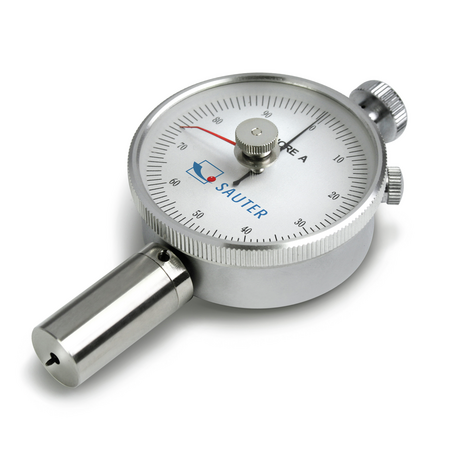

KernSKU: HBA 100-0
Price:
£125.00



  • Description

    • Typical application: measurement of penetration (Shore)
    • Particularly recommended for internal comparison measurement. Standard calibrations e.g. to DIN 48-4 are not possible because of very narrow standard tolerances
    • Shore A: Rubber, elastomers, neoprene, silicone, vinyl, so plastics, felt, leather and similar material
    • Max mode: Records the peak value indication by drag pointer
    • Can be attached to the test stand SAUTER TI-AC
    • Delivery in a plastic box

  • Technical Data

    Hardness scales Shore A
    Measuring range Shore [Max] 100 HA
    Readability Shore [d] 1 HA
    Tolerance (% of [Max]) 3%
    Scale - Display type Analogue
    Material housing metal
    Measuring probe diameter 18 mm
    Test force Hardness measurement 10 N
    Product family HB
    GTIN/EAN number 4045761140172

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
