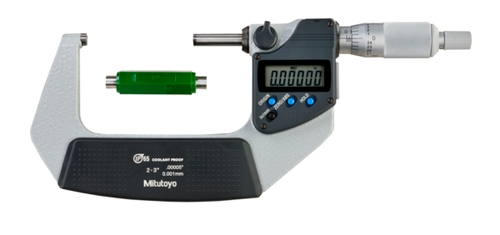

Mitutoyo Digital Micrometer IP65, Inch/Metric 50-75mm/2-3", with Output Item number: 293-332-30 Ratchet stop

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer IP65, Inch/Metric 50-75mm/2-3", with Output Item number: 293-332-30 Ratchet stop

Name: Mitutoyo Digital Micrometer IP65, Inch/Metric 50-75mm/2-3", with Output Item number: 293-332-30 Ratchet stop
Brand: Mitutoyo
SKU: 293-332-30
Price: 270.0 GBP
Availability: InStock

MitutoyoSKU: 293-332-30

List price: £370.00 Offer price: £270.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£25.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Add UKAS calibration of setting standard Calibration Micrometer Setting Rod ≤ 100mm
£18.00 per setting standard
The setting standard is calibrated separately from the micrometer.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Recommended Alternatives

Select an alternative below to view its full details.

Sort alternatives Choose price or brand order

Inspec Digital Micrometer 130-03-414 Range 50-75mm/2-3" Resolution .00005"/.001mmBrand: InspecSKU: 130-03-414 Price: £60.00 View this alternative →

Inspec Digital Micrometer 132-03-830 Range 50-75mm/2-3" Resolution .00005"/.001mmBrand: InspecSKU: 132-03-830 Price: £70.00 View this alternative →

Insize Digital Outside Micrometer Range 2-3"/50-75mm Resolution .00005"/.001mm 3108-75Brand: InsizeSKU: 3108-75 Price: £99.00 View this alternative →

Mitutoyo / Moore & Wright Digital Micrometer IP65, Inch/Metric 50-75mm/2-3", with Output Item number: Ratchet Thimble MED983DBrand: MitutoyoSKU: MED983D Price: £135.00 View this alternative →

Starett Electronic Micrometers 796XFL-3 IP67 Protected With Output, Resolution .00005''/.001mm, 2-3"/50-75mmBrand: StarrettSKU: 796XFL-3 Price: £170.00 View this alternative →

Mitutoyo Digital Micrometer Starrett 3732MEXFL-75 Micrometer; 50-75mm Range-Friction ThimbleBrand: StarrettSKU: 3732MEXFL-75 Price: £175.00 View this alternative →

Mahr Digital Micrometers Range 2-3''/50-75mm With SPC Output, Resolution .001mm/.00005'' 4150572Brand: MahrSKU: 4150572 Price: £200.00 View this alternative →

Starrett 795MEXFL-75 Electronic Micrometers 50-75mm/2-3" provide an IP67 protection with RS232 outputBrand: StarrettSKU: 795MEXFL-75 Price: £208.00 View this alternative →

Mitutoyo Digital Micrometer IP65, Inch/Metric 50-75mm/2-3", without Output Ratchet Stop 293-342-30Brand: MitutoyoSKU: 293-342-30 Price: £247.00 View this alternative →

Mitutoyo Digital Micrometer IP65,Metric 50-75mm with Output Ratchet stop 293-232-30Brand: MitutoyoSKU: 293-232-30 Price: £270.00 View this alternative →

Overview Technical Information Applications Videos & Documents

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement. Digimatic data output.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard
Inch-Metric:	Inch/Metric
Range:	2 - 3 "
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,0001"
Flatness:	0,000012"
Parallelism:	0,00008"
Data output:	Yes
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years for models ?4" 1.2 years for >4"
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET (over 100 mm):	Yes
Mass:	470 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Micrometer IP65, Inch/Metric 50-75mm/2-3", with Output Item number: 293-332-30 Ratchet stop Click to open the PDF document
