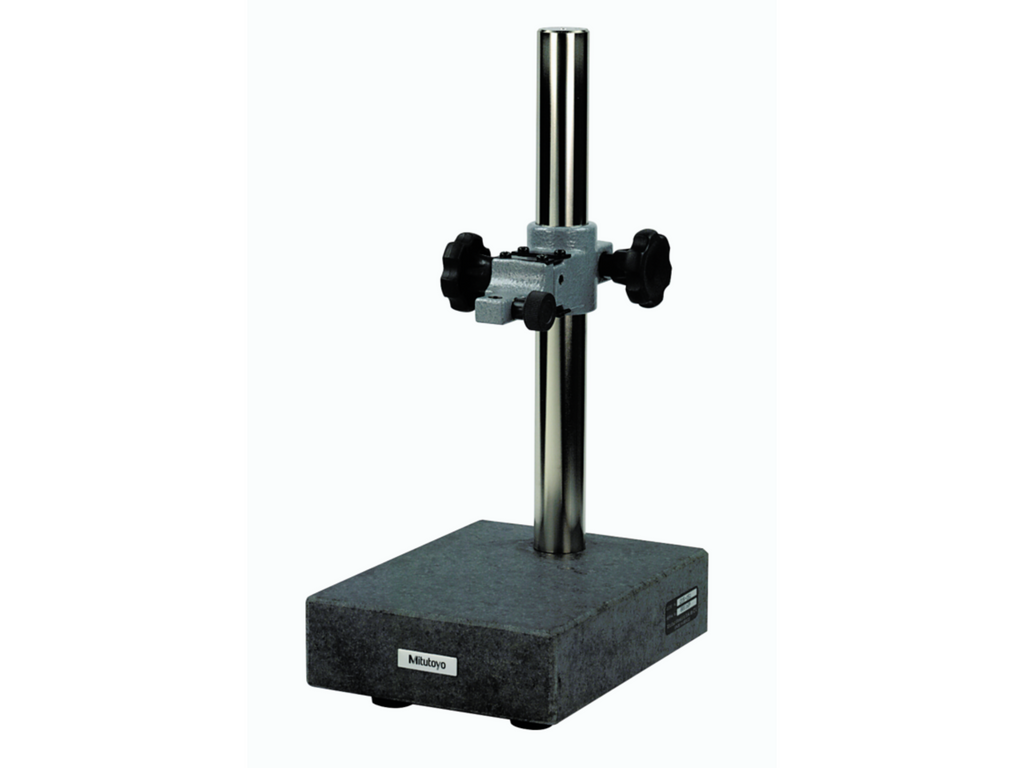

Mitutoyo; Gauge Stand with Granite Base
Mitutoyo Dial Gauge Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator, with wear-resistant hard rock table
Specification
Column Ø: 30 mm
Max. measurement height: 260 mm
Fine adjustment: 1 mm
Stem hole ø: ø 3/8" / 9.53 mm , 8 mm with bush (standard accessory)
Table flatness: 3 µm
Perpendicularity table-stem hole: 0.2/100 mm/mm
Mass: 7.5 kg
All images are for representation only.
No technical information is currently available.
No application information is currently available.
