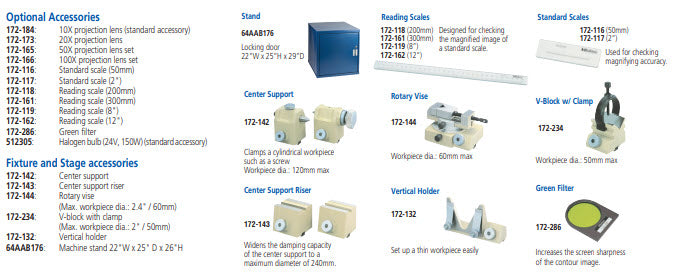

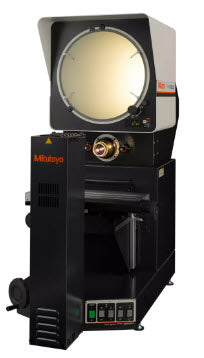

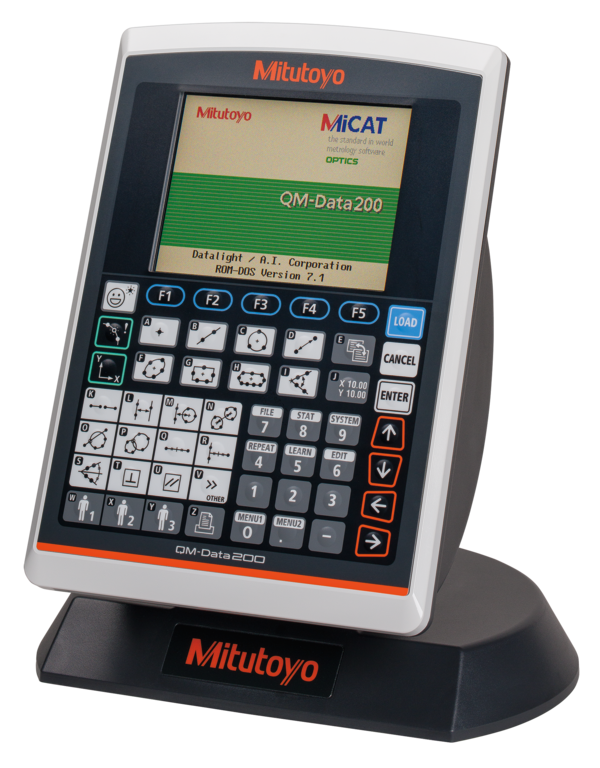

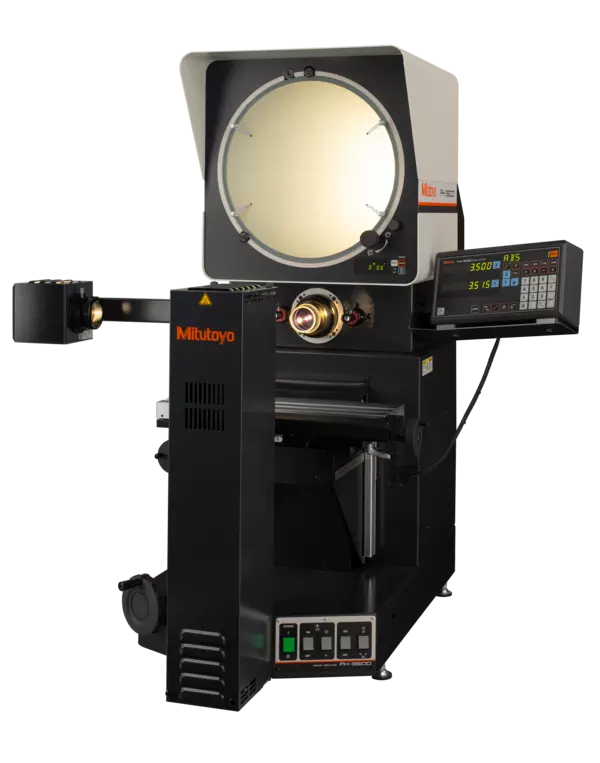

Mitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mm
Mitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mm
Mitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mm
Mitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mm
Mitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mm
Mitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mm
Roll over image to zoom in Click on image to zoom
Mitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mmMitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mmMitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mmMitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mmMitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mmMitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mm

Mitutoyo 172-868-12 Measuring Projector PH-3515F X=254 Y= 152 mm

MitutoyoSKU: 172-868-12
List price: £11,790.00 Offer price: £10,375.20 Excluding VAT
  • Due to the PH-3515F’s horizontal-beam illumination, you can easily measure larger and heavier workpieces including toothed racks and punching tools.
  • You can use the projector for a wide range of applications due to its generous 254 x 152 mm stage travel and 45 kg allowable stage loading.

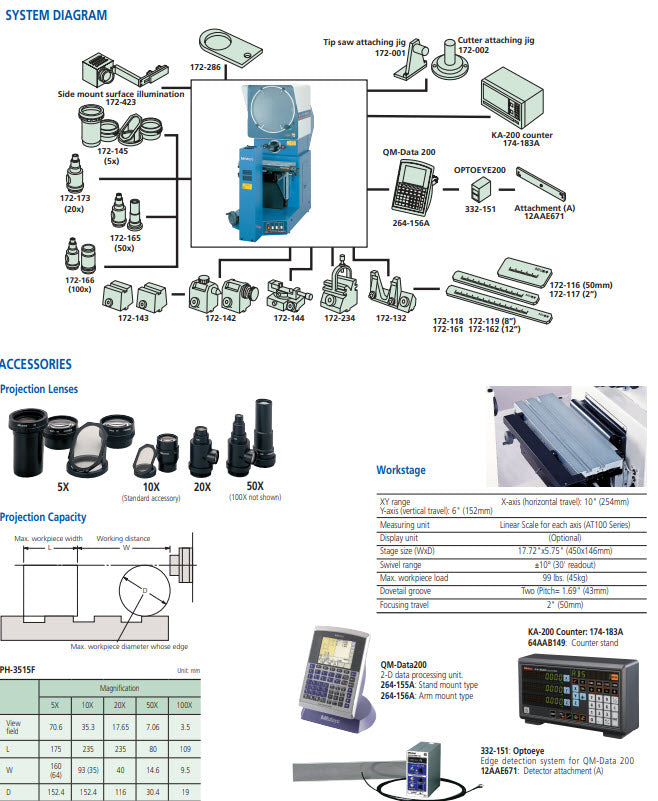

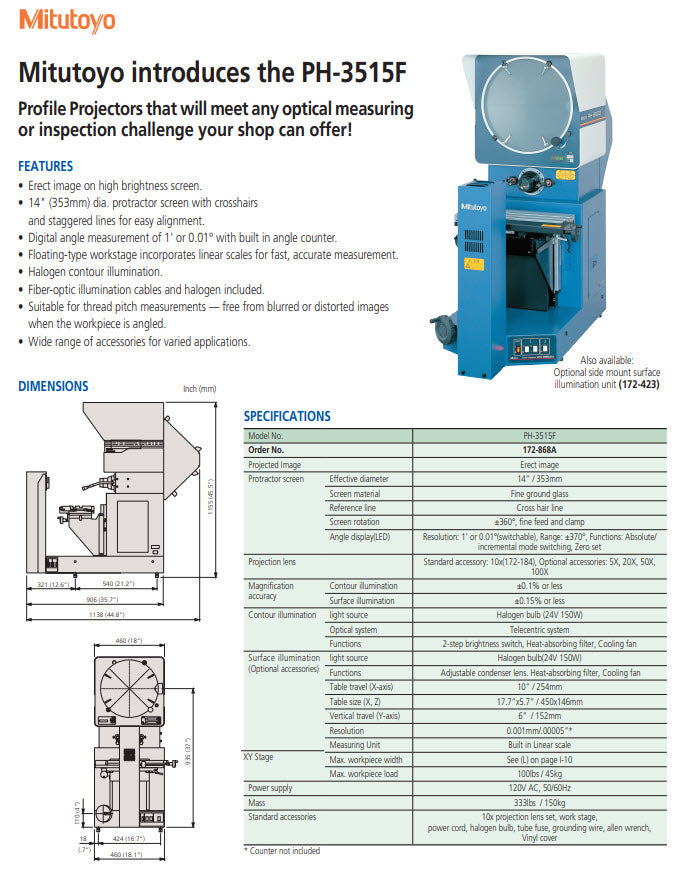

Specification
Measuring range XY:
254 x152 mm
Projected image:
Erect
Projector screen:
Effective diameter: 353 mm
Screen material: Fine-ground glass
Screen rotation: ±360°, fine feed and clamp
Angle display: Digital counter (LED)
Resolution: 1' or 0.01° (switchable)
Range: ±370°ABS/INC mode switching, Zero Set
Reference lines : Cross-hairs
Projection lens:
10X (172-184)
Optional: 5X, 20X, 50X, 100X
Magnification accuracy:
Contour illumination: ±0.1% or better
Surface illumination: ±0.15% or better
Contor Illumination:
Light source: Halogen bulb (24V, 150W)
Optical system: Telecentric system
Functions: 2-step (High/Low) brightness adjustment, Heat-absorbing filter, Cooling fan
Surface illumination:
Light source: Halogen bulb (24V, 150W)
Optical system: Vertical illumination
Functions: Adjustable condenser lens, 2-step (High/Low) brightness adjustment, Heat-absorbing filter, Cooling fan
Resolution:
0,001 mm
Model:
PH-3515F
Power supply:
220 - 240V AC, 50/60Hz
XY stage [mm]:
254 x 152
Measuring method:
Linear encoder
Quick-release mechanism:
X axis
XY stage table top size:
450 x 146 mm
Table swiveling function:
±10°
Max stage loading:
45 kg
Mass:
150 kg

No technical information is currently available.

No application information is currently available.
