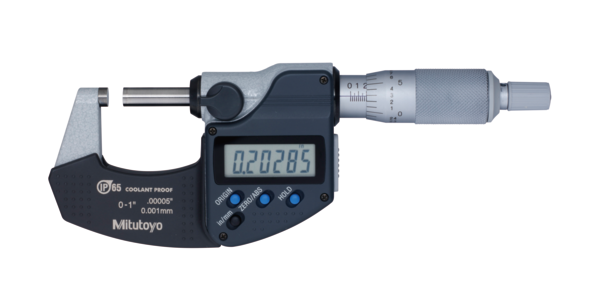

Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble
Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble
Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble
Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble
Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble
Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble
Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble
Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble
Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble
Roll over image to zoom in Click on image to zoom
Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet ThimbleMitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet ThimbleMitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet ThimbleMitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet ThimbleMitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet ThimbleMitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet ThimbleMitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet ThimbleMitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet ThimbleMitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble

Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble

MitutoyoSKU: 293-344-30
List price: £243.00 Offer price: £177.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
MHC 600-1002 Micrometer Stand with magnetic base, For Mic. under 4" or 100mm
Part number: 600-1002  → View product
MHC 7PC MICROMETER ANVIL SET FOR USE ON MICROMETERS 600-0107
Part number: 600-0107  → View product
Optical Parallels Set, Metric 0-25mm 157-903
Part number: 157-903  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product
Mitutoyo Ball Attachment 0,2" for 6,35mm Spindle 101468E
Part number: 101468E  → View product
Mitutoyo Ball Attachment 5mm for 6,35mm Spindle 101468M
Part number: 101468M  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product

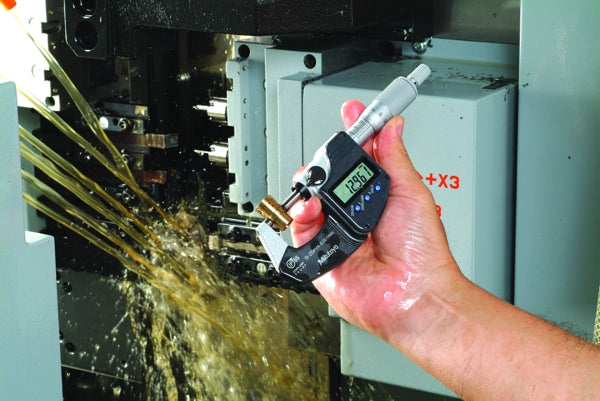

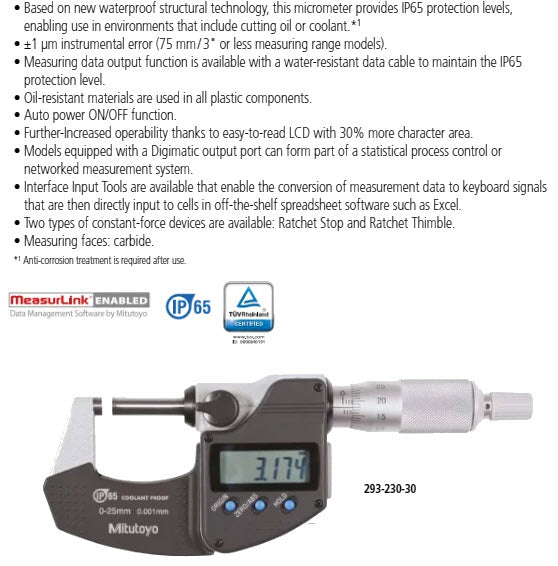

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement.

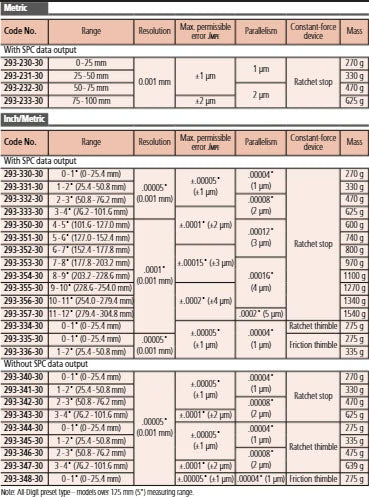

Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, SR44 battery, certificate of inspection
Inch-Metric:
Inch/Metric
Range:
0 - 1 "/0-25mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,00005"
Flatness:
0,000012"
Parallelism:
0,00004"
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years for models ?4"
1.2 years for >4"
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET (over 100 mm):
Yes
Mass:
280 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo 293-344-30 Digital Micrometer IP65, Inch/Metric 0-25mm/ 0-1", without Output, Ratchet Thimble Click to open the PDF document
