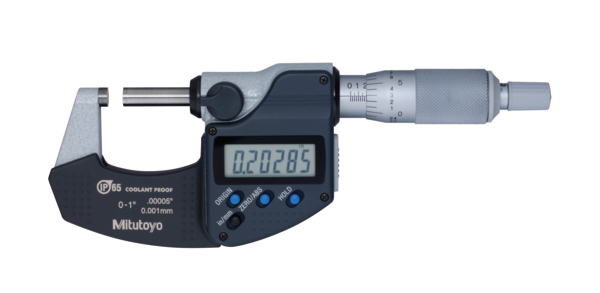

Mitutoyo Micrometer 1"/ 25.4mm IP65 Ratchet Stop-No SPC 293-340-30

MitutoyoSKU: 293-340-30
List price: £231.00 Offer price: £165.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
MHC 600-1002 Micrometer Stand with magnetic base, For Mic. under 4" or 100mm
Part number: 600-1002  → View product
MHC 7PC MICROMETER ANVIL SET FOR USE ON MICROMETERS 600-0107
Part number: 600-0107  → View product
Optical Parallels Set, Metric 0-25mm 157-903
Part number: 157-903  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product

Mitutoyo; Digital Micrometer

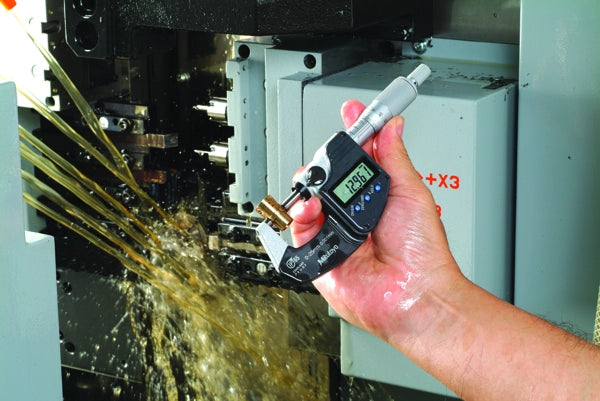

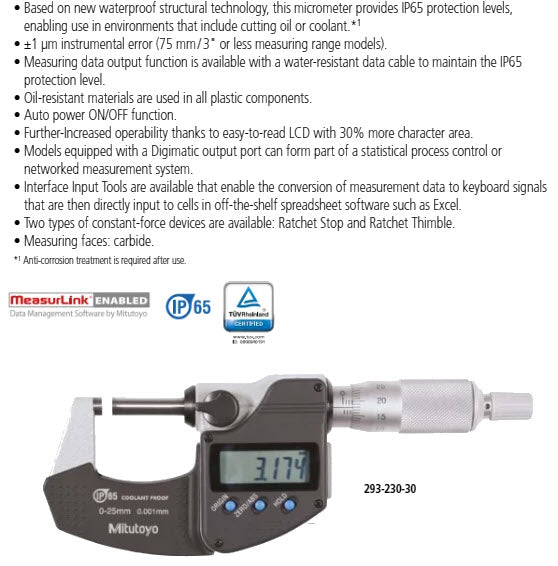

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement. Digimatic data output.
  • Digital/Analog:
    Digital
    Delivered:
    Including box, spanner, SR44 battery, setting standard, certificate of inspection
    Inch-Metric:
    Inch/Metric
    Range:
    0 - 1 "/0-25mm
    Digital step:
    0,00005"/0,001 mm
    Max.
    Permissible Error
    J MPE:
    ±0,00005"
    Flatness:
    0,000012"
    Parallelism:
    0,00004"
    Display:
    LCD, character height 7.5 mm
    Measuring face:
    Carbide-tipped, micro-lap finish
    Measuring spindle:
    With spindle lock, ø6,35 mm, spindle pitch 0,5 mm

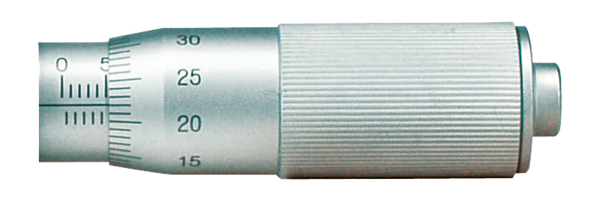

    Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
    Measuring force:
    5 - 10 N
    Power supply:
    1 battery SR-44
    Battery life:
    Approx. 2.4 years for models ?4"
    1.2 years for >4"
    Delivered:
    Including box, key, 1 battery, setting standard (from 1" upward)
    certificate of inspection (0-2" range)

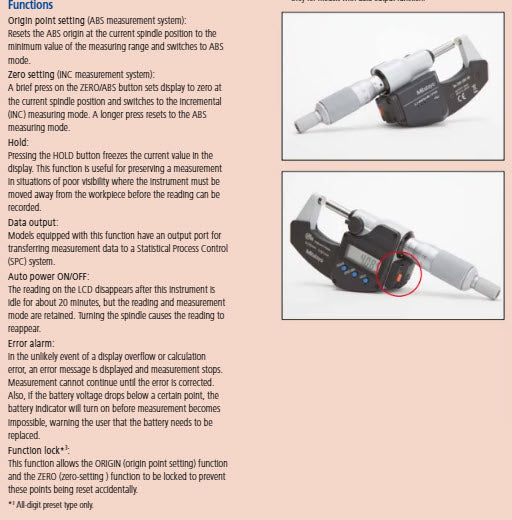

    ABS / INC (INC ZERO):
    Yes
    Auto Power OFF after 20 min. non use:
    Yes
    Low voltage alarm:
    Yes
    Function lock:
    Yes
    HOLD:
    Yes
    2 x PRESET (over 100 mm):
    Yes
    Mass:
    270 g

No technical information is currently available.

No application information is currently available.
