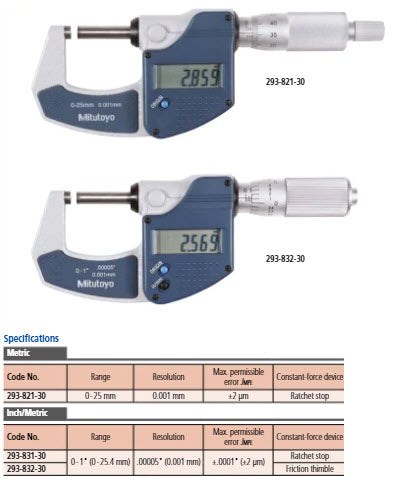

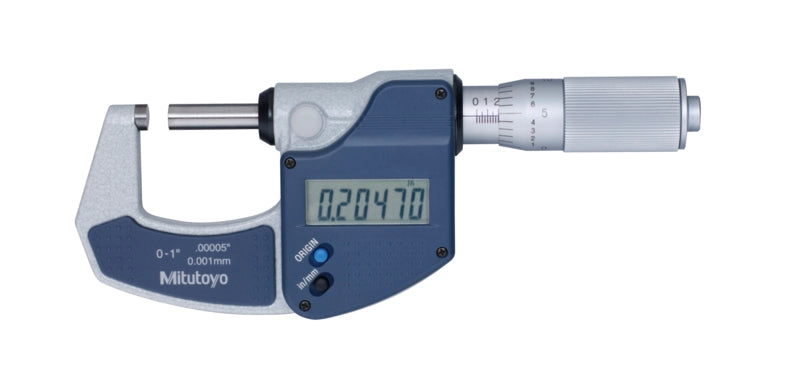

Mitutoyo Metric Digimatic Micrometer 0-25mm/.0-1" W/O Output Resolution .0010mm/.00005" Friction Thimble 293-832-30

Metric Digimatic Micrometer 0-25mm 293-821-30 W/O Data Output

Series 293
A Mitutoyo basic, cost-effective digital micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.

• It is cost-effective with simplified functionality for standard applications.
• Extraordinary battery life of 2,4 years. Without data output.
• Constant measuring force

• Digital/Analog: Digital
• Inch-Metric: Metric
• Range: 0 - 25 mm
• Digital step: 0.001 mm
• Maximum Permissible Error J MPE:±2 µm
• Accuracy:±2 µm
• Flatness: 0 .3 µm
• Parallelism: 1 µm
• Display:
• LCD, character height 7.5 mm
• Measuring spindle:ø6.35 mm, spindle pitch 0.5 mm
• Scale: Thimble and sleeve satin chrome finish, ø18 mm
• Power supply:1 battery SR-44
• Battery life: Approx. 2.4 years
• Delivered:
• Including box, key, 1 battery, certificate of inspection
• Auto Power OFF after 20 min
• Function lock: Yes
• Mass:275 g

All images are for representation only.
