- Resolution: .00005" (.001mm)
- Patented capacitive measuring system.
- Energy-saving function.
- Data output via Opto RS232C or alternatively digimatic.
- High contrast LCD display.
- Heat insulated, laquered steel frame.
- Carbide tipped measuring spindle and anvil.
- Measuring spindle hardened and ground.
- Ratchet integrated into thimble.
- Locking device.
| Brand | MAHR FEDERAL |
|---|---|
| Graduation | .00005" |
| Measuring Range | 0 - 1" (0 - 25mm) |
| Model # | 4150570 |

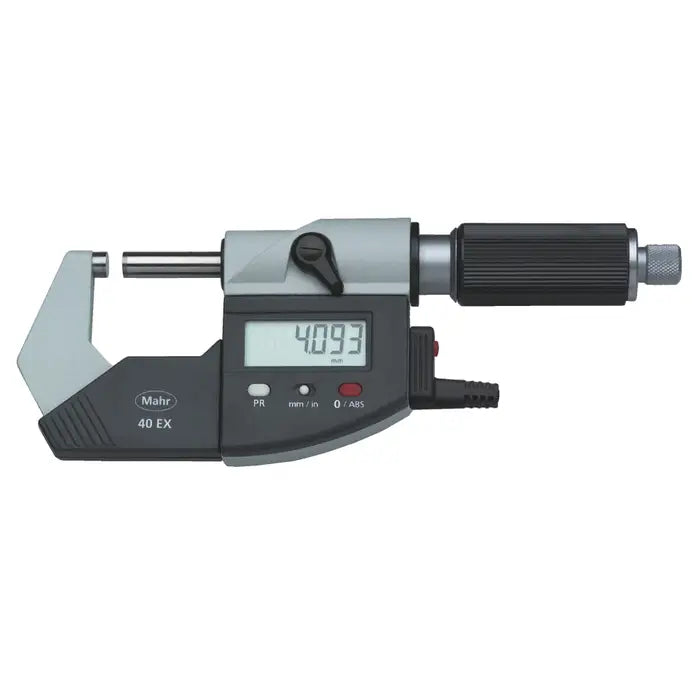

| Type | Digital Outside Micrometer |
| Output | With Data Output |
| Data Output | With Data Output |
| Finish Coating | Laquered Steel |
| LCD Resolution | .0005" |
| Limits of Error | .0002" (4µm) |
| Prop. 65 | Yes |
| Range | 0 - 1" (0 - 25mm) |
| Type of Reading | Inch/metric |
| Weight | 1.32 lbs. |
| Country of Origin | GERMANY |
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
