Specifications
Part Diameter Capacity: 1/8″ to 1″ (3mm to 25mm)
Diameter Minimum 1/24″ (1mm) or less with Zero Style Rollers
Part Length Capacity: Up to 4″ (102mm)
Gage Length: 10.5″ (267mm)
Gage Width: 4.5″ (114mm)
Gage Height: 6″ appx. (152 mm)
B-10 Universal Punch Concentricity Gages are comprised of three main components for assembly:
Zero Plain Rollers
For Block Size -10 models, Zero Plain Rollers may be used to decrease the capacity diameter minimum to nearly zero in/mm.
Features
- Adjustable multi-position top arm yoke assembly offers a variety of clamping pressures and positions to accommodate a range of part diameter sizes.
- All standard indicator carriers have fine adjustment screws that provide accurate indicator probe positioning, zeroing and provide smooth indicator movement to increase measuring performance and accuracy.
- All gages come standard with a manual drive timing belt pulleys system that provides a constant smooth part rotation when inspecting. (Optional) 110/220 volts AC/DC fixed speed or variable speed motorized drive systems are available.
- All carriers offer a variety of positions that move along the Z-axis of the carrier rod assembly. The carrier tilts 90 degrees to facilitate easy loading and unloading of parts.
P
- Standard or Precision Accuracy
- Main Rollers
- Indicator(s) and/or other accessories

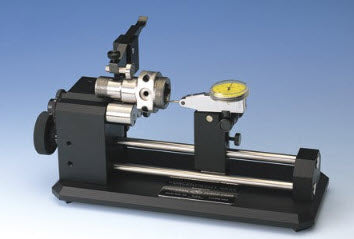

Universal Punch concentricity gauges come with everything pictured EXCEPT the indicators and the main rollers.
Main Rollers must be ordered Separately as well as Indicator
No technical information is currently available.
No application information is currently available.
