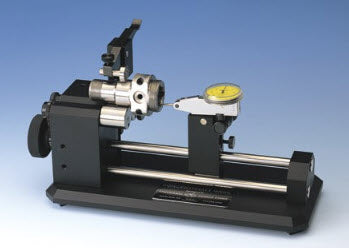

Universal Punch B-10P Model Part Diameters: 1/8” - 1” (3mm to 25mm) Part Lengths: up to 4” (102mm) 3/32” (1mm) Capacity with Zero Style Rollers, Accuracy .002mm/.00008"

Universal PunchSKU: B-10P

Gauge price: Sale price £1,590.00 Excluding VAT

Universal Punch USA

MQS are the sole agents in the UK and Ireland for Universal Punch, USA.

Universal Punch A-10P concentricity gaugeA-10P Featured model

Build your B-10P gauge

Frame only — main rollers and indicators not included. Choose one roller set, then add any optional accessories you need.

All prices exclude VAT. Selected extras are additional to the gauge price.

Select your rollers Required

Choose one compatible set per frame. No roller set is preselected.

SKU: 110-10FPView details (opens a new tab)
+£350.00
SKU: 110-10HPView details (opens a new tab)
+£395.00
SKU: 110-10QPView details (opens a new tab)
+£395.00
SKU: 110-10FZView details (opens a new tab)
+£465.00
SKU: 110-10HZView details (opens a new tab)
+£490.00
SKU: 110-10QZView details (opens a new tab)
+£490.00
SKU: 110-10TZView details (opens a new tab)
+£540.00
Stop assemblies Optional

Tick any stops required. Each selected stop is added at its shown price.

SKU: 310-10View details (opens a new tab)
+£110.00
SKU: 312-10View details (opens a new tab)
+£150.00
SKU: 315-10View details (opens a new tab)
+£445.00
Optional indicators Optional

Choose either or both. Quantity is the number of each indicator per gauge ordered. No indicator is preselected.

SKU: 513-401-10EView details (opens a new tab)Graduation 0.001 mm · range 0.14 mm · 8 mm stem
+£97.00
SKU: 513-403-10EView details (opens a new tab)Graduation 0.0001 inch · range 0.008 inch · 9.52 mm stem
+£99.00

Select a suitable mounting arrangement for your gauge. Buying an indicator does not add an extra carrier or adaptor.

Your selected items

Frame B-10P
£1,590.00
Roller set
Choose a set
Optional accessories & indicators
£0.00
Per configured gauge
—
Selected total 1 gauge
—

Excluding VAT. Selected items and indicator quantities are multiplied by the gauge quantity.

Choose a roller set to complete your gauge.

The gauge and selected extras appear as separate basket lines, with their own SKUs and prices. Indicators are supplied only when selected above.

  • PDF of Concentricity Gauges

    Specifications

    Part Diameter Capacity: 1/8″ to 1″ (3mm to 25mm)

    Diameter Minimum 1/24″ (1mm) or less with Zero Style Rollers

    Part Length Capacity: Up to 4″ (102mm)

    Gage Length: 10.5″ (267mm)

    Gage Width: 4.5″ (114mm)

    Gage Height: 6″ appx. (152 mm)

    B-10 Universal Punch Concentricity Gages are comprised of three main components for assembly:

    Zero Plain Rollers

    For Block Size -10 models, Zero Plain Rollers may be used to decrease the capacity diameter minimum to nearly zero in/mm.

    Features

    • Adjustable multi-position top arm yoke assembly offers a variety of clamping pressures and positions to accommodate a range of part diameter sizes.
    • All standard indicator carriers have fine adjustment screws that provide accurate indicator probe positioning, zeroing and provide smooth indicator movement to increase measuring performance and accuracy.
    • All gages come standard with a manual drive timing belt pulleys system that provides a constant smooth part rotation when inspecting. (Optional) 110/220 volts AC/DC fixed speed or variable speed motorized drive systems are available.
    • All carriers offer a variety of positions that move along the Z-axis of the carrier rod assembly. The carrier tilts 90 degrees to facilitate easy loading and unloading of parts.

    P

    • Standard or Precision Accuracy
    • Main Rollers
    • Indicator(s) and/or other accessories

    Universal Punch concentricity gauges come with everything pictured EXCEPT the indicators and the main rollers.

    Main Rollers must be ordered Separately as well as Indicator

No technical information is currently available.

No application information is currently available.
