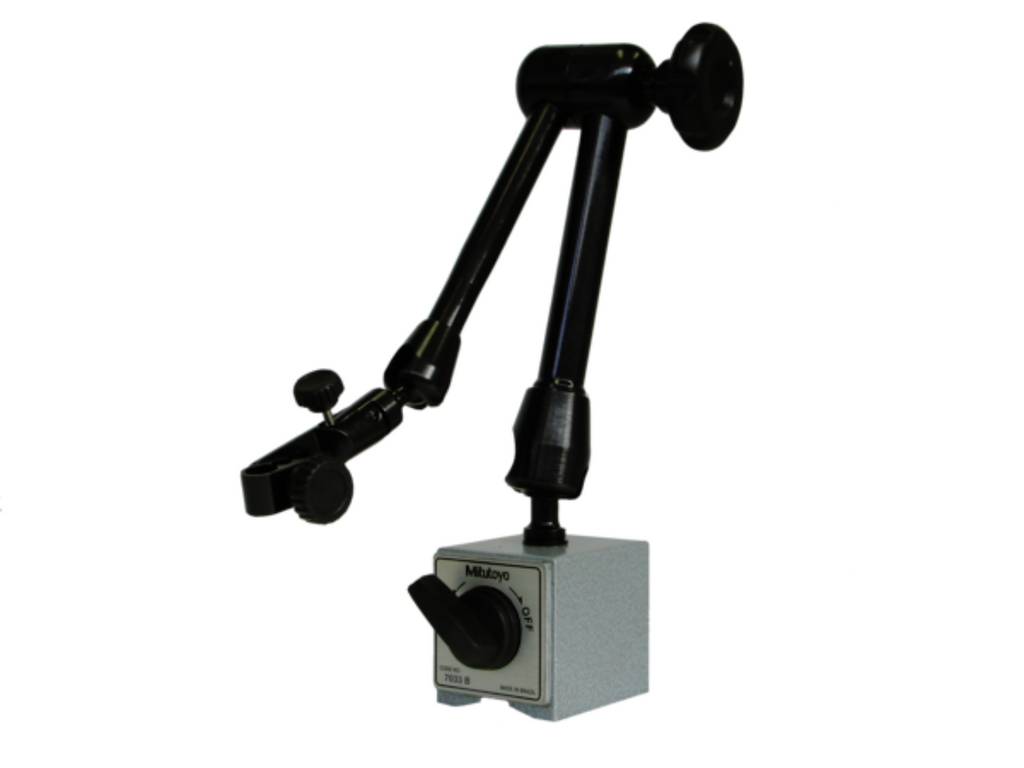

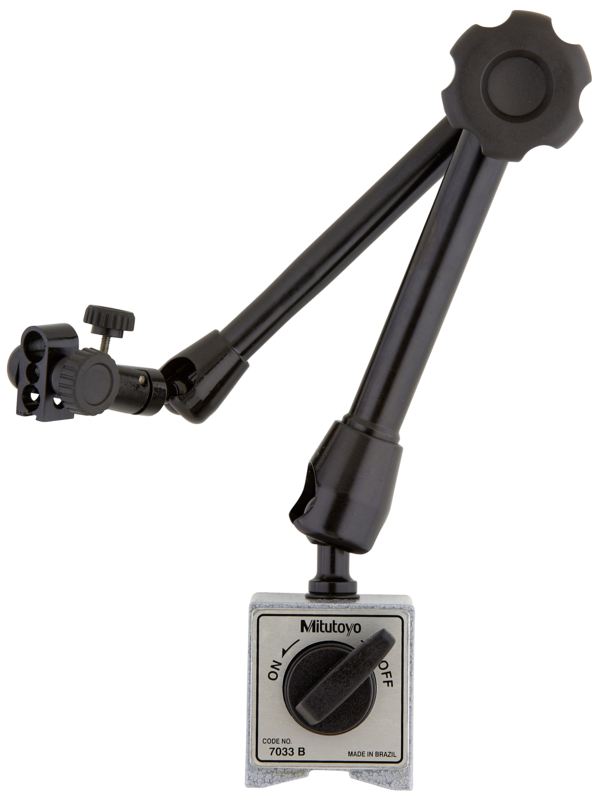

With a mechanical locking system and fine adjustment, allows a dial indicator to be fixed in any position.

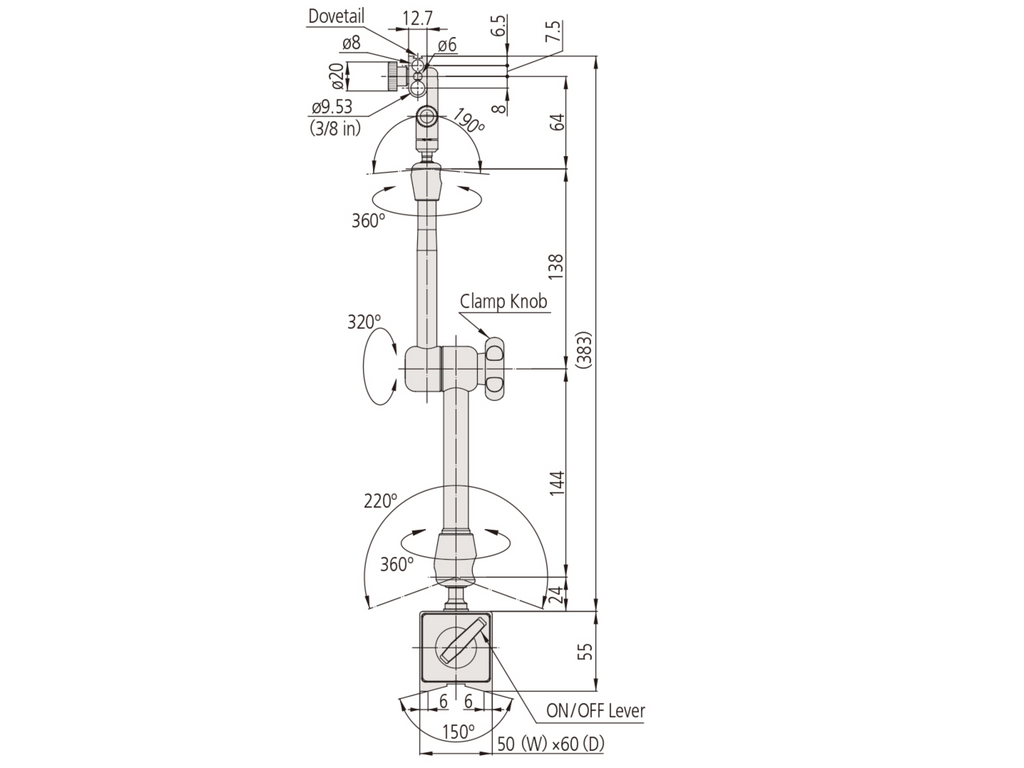

Specification
Clamping device: magneticMagnetic force (vertical): 600 N
Magnetic stand size (LXWXH): 59 x 50 x 55 mm
Total height: 425 mm
Fine adjustment °: ±4

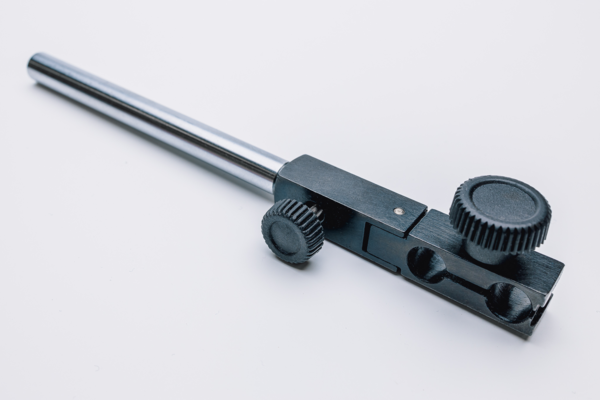

Fine adjustment: with fine feed wheel +-4°
Stem hole ø: 6 mm, 8 mm, 9.53 mm, dovetail
Working radius: 346 mm
Thread Arm/Base: M8 x 1.25
Mass: 1.75 kg
All images are for representation only.
No technical information is currently available.
No application information is currently available.
